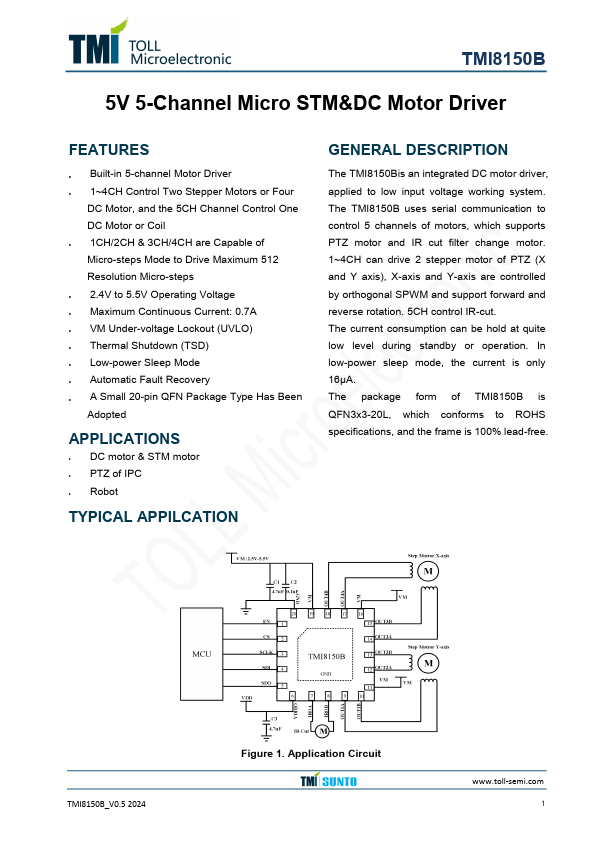

TMI8150B Datasheet | TOLL

FEATURES - Built-in 5-channel Motor Driver - 1~4CH Control Two Stepper Motors or Four DC Motor, and the 5CH Channel Control One DC Motor or Coil - 1CH/2CH & 3CH/4CH are Capable of Micro-steps Mode to Drive Maximum 512 Resolution Micro-steps - 2.4V to 5.5V Operating Voltage - Maximum Continuous Current: 0.7A - VM Under-voltage Lockout (UVLO) - Thermal Shutdown (TSD) - Low-power Sleep Mode - Automatic Fault Recovery - A Small 20-pin QFN Package Type Has Been Adopted APPLICATIONS - DC motor & STM motor - PTZ of IPC - Robot TYPICAL APPILCATION GENERAL DESCRIPTION The TMI8150Bis an integrated DC motor driver, applied to low input voltage working system. The TMI8150B uses serial munication to control 5 channels of motors, which supports PTZ motor and IR cut filter change motor. 1~4CH can drive 2 stepper motor of PTZ (X and Y axis), X-axis and Y-axis are controlled by orthogonal SPWM and support forward and reverse rotation. 5CH control IR-cut. The current consumption can be hold at quite low level during standby or operation. In low-power sleep mode, the current is only 16μA. The package form of TMI8150B is QFN3x3-20L, which conforms to ROHS specifications, and the frame is 100% lead-free. TMI8150B_V0.5 2024 Figure 1. Application Circuit .toll-semi. ABSOLUTE MAXIMUM RATINGS (Note 1) Parameter Power Supply Voltage (VM) Logic power supply(VDDIO) EN, SCLK, SDI, CS Input Voltage Maximum Operating Junction Temperature TJ(Note 2) Storage Temperature Tsdg Operating Temperature Top Maximum Chip Thermal Resistance θJA Maximum Pin Solder Temperature (soldering 10s) PACKAGE/ORDER INFORMATION Value -0.3~6 -0.3~6 -0.3~VM 150 -55~150 -40~85 80 260 Unit V V V °C °C °C °C/W °C QFN3X3-20L Top Mark: TMI8150B/XXXXX (TMI8150B: Device Code, XXXXX: Inside Code) Part Number Package Top mark Quantity/ Reel QFN3x3-20L 8150B...
