XC6218 - Low Power Supply LDO Regulators

General Description

XC6218 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes.

Key Features

  • Maximum Output Current : 200mA (300mA Limit: TYP. ) (@VOUT=3.0V, VIN=4.0V) Dropout Voltage : 200mV@IOUT=100mA (@VOUT=3.0V) Operating Voltage Range : 1.5V ~ 6.0V Output Voltage : 0.9 ~ 4.0V (0.1V increments) High Accuracy : Setting Voltage Accuracyʶ2% (1.5ʻVOUT(T)ʽ4.0V) Setting Voltage Accuracyʶ30mV (0.9ʽVOUT(T)ʽ1.5V) Low Power Supply : 1.0ЖA (TYP. ) Operating Ambient : - 40ˆʙ85ˆ Temperature External Capacitor : 0.1ЖF~1.0ЖF Packages : USP-3, SSOT-24 ˙.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC6210 High Current / High Speed LDO Regulators Torex Semiconductor
XC6212 (XC6209 / XC6212) High Speed LDO Regulator Torex Semiconductor
XC6213 High Speed LDO Regulators Torex Semiconductor
XC6214 CMOS Low Power Consumption Torex Semiconductor
XC6215 Low Power Consumption Voltage Regulator Torex Semiconductor

Other Datasheets by Torex Semiconductor

Part Number Description
XC6211 300mA High Speed LDO Regulators
XC6238 300mA High Speed LDO Regulator
XC6240 Rechargeable Batteries Charging
XC6241 High Speed Voltage Regulators
XC6242 Charging IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

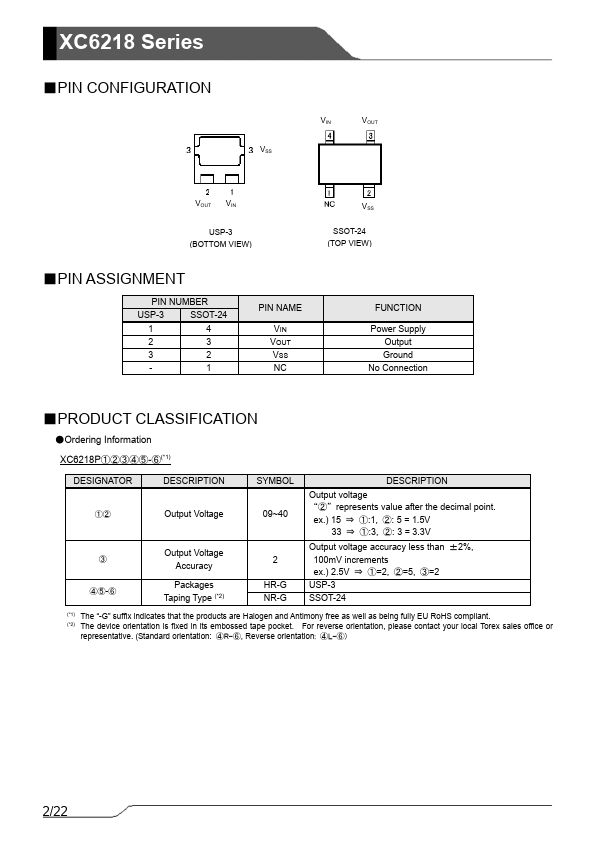

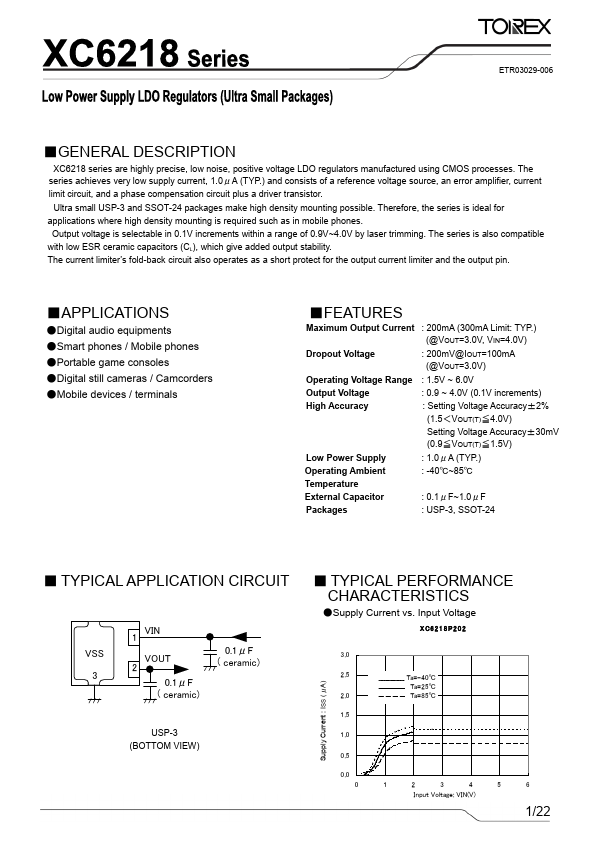

ETR0329-005  ˙GENERAL DESCRIPTION XC6218 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves very low supply current, 1.0ЖA (TYP.) and consists of a reference voltage source, an error amplifier, current limit circuit, and a phase compensation circuit plus a driver transistor. Ultra small USP-3 and SSOT-24 packages make high density mounting possible. Therefore, the series is ideal for applications where high density mounting is required such as in mobile phones. Output voltage is selectable in 0.1V increments within a range of 0.9Vʙ4.0V by laser trimming. The series is also compatible with low ESR ceramic capacitors (CL), which give added output stability.
