TCK-051 - Common Mode Choke

TRACO POWER

Datasheet Details

Part number	TCK-051
Manufacturer	TRACO POWER
File Size	749.01 KB
Description	Common Mode Choke
Datasheet	TCK-051 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
TCK101G	1A Load Switch	Toshiba
TCK1024G	Load Switch	Toshiba
TCK102G	1A Load Switch	Toshiba
TCK104G	Load Switch	Toshiba
TCK105G	Load Switch	Toshiba

Other Datasheets by TRACO POWER

Part Number	Description
TCK-063	Inductor
TCK-077	Inductor
TCK-101	Choke
TCK-111	Inductor
TCK-131	Inductor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

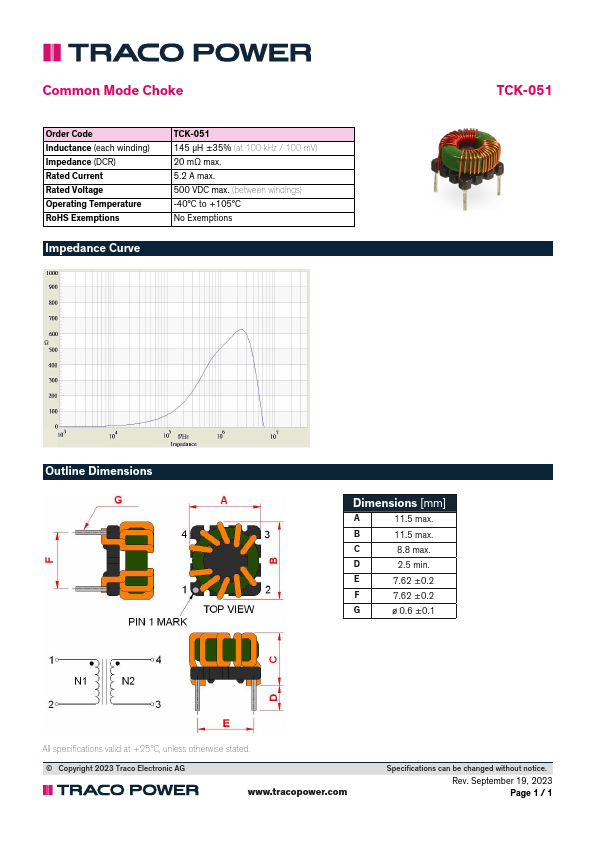

Common Mode Choke Order Code Inductance (each winding) Impedance (DCR) Rated Current Rated Voltage Operating Temperature RoHS Exemptions Impedance Curve TCK-051 145 µH ±35% (at 100 kHz / 100 mV) 20 mΩ max. 5.2 A max. 500 VDC max. (between windings) -40°C to +105°C No Exemptions TCK-051 Outline Dimensions Dimensions [mm] A 11.5 max. B 11.5 max. C 8.8 max. D 2.5 min. E 7.62 ±0.2 F 7.62 ±0.2 G ø 0.6 ±0.1 All specifications valid at +25°C, unless otherwise stated. © Copyright 2023 Traco Electronic AG www.tracopower.com Speciﬁcations can be changed without notice. Rev.
