TCL024-105 - Industrial Power Supplies

TRACO POWER

Key Features

For industrial, office and residential.

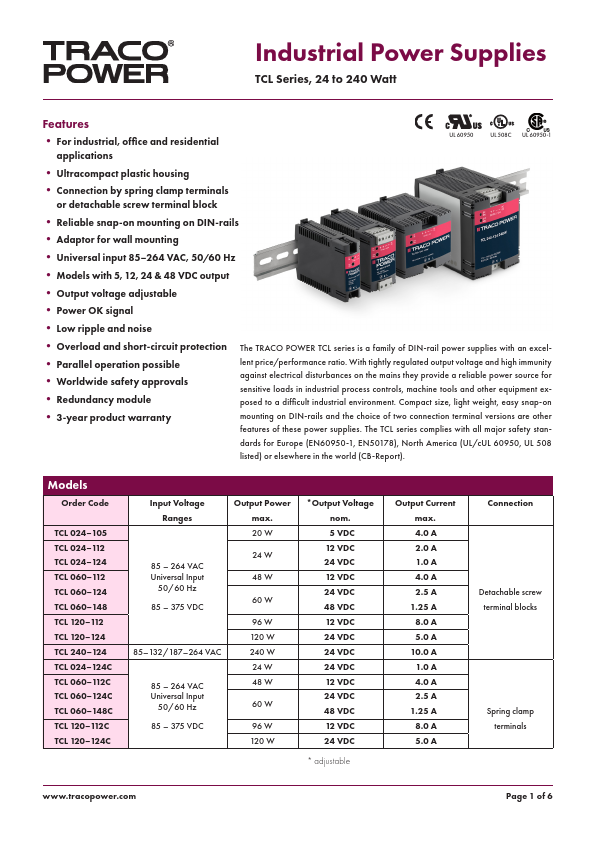

TCL024-105 industrial power supplies by TRACO POWER - Datasheet Preview

Datasheet Details

Part number	TCL024-105
Manufacturer	TRACO POWER
File Size	512.44 KB
Description	Industrial Power Supplies
Datasheet	TCL024-105 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
TCL-REM240	Industrial Power Supplies	TRACO Electronic
TCL1117	800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V	TelCom Semiconductor
TCL1117-2.85	800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V	TelCom Semiconductor
TCL1117-3.30	800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V	TelCom Semiconductor
TCL1117-5.00	800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V	TelCom Semiconductor

Other Datasheets by TRACO POWER

Part Number	Description
TCL024-112	Industrial Power Supplies
TCL024-124	Industrial Power Supplies
TCL024-124C	Industrial Power Supplies
TCL060-112	Industrial Power Supplies
TCL060-112C	Industrial Power Supplies

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Industrial Power Supplies TCL Series, 24 to 240 Watt Features • For industrial, office and residential applications UL 60950 UL 508C UL 60950-1 • Ultracompact plastic housing • Connection by spring clamp terminals or detachable screw terminal block • Reliable snap-on mounting on DIN-rails • Adaptor for wall mounting • Universal input 85–264 VAC, 50/60 Hz • Models with 5, 12, 24 & 48 VDC output • Output voltage adjustable • Power OK signal • Low ripple and noise • Overload and short-circuit protection • Parallel operation possible • Worldwide safety approvals • Redundancy module • 3-year product warranty The TRACO POWER TCL series is a family of DIN-rail power supplies with an excellent price/performance ratio.
