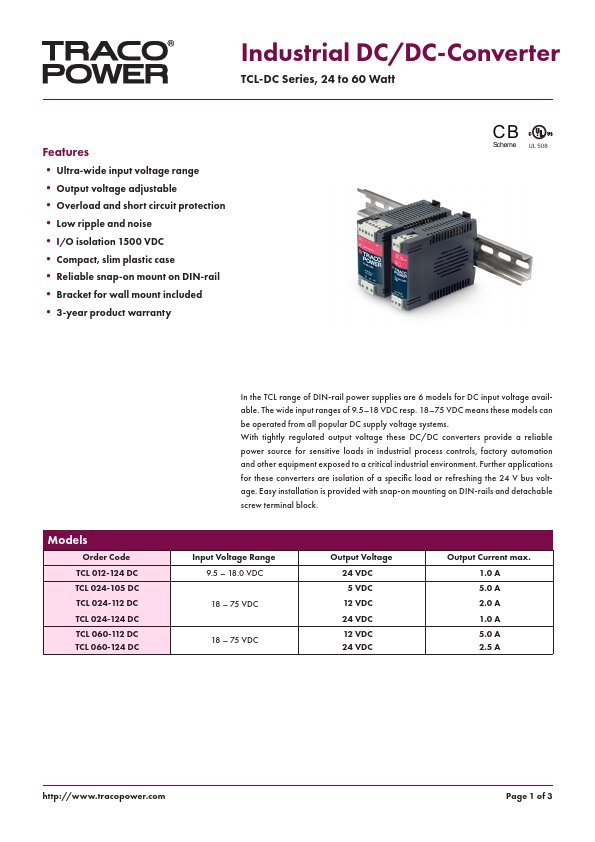

Datasheet Summary
Industrial DC/DC-Converter
TCL-DC Series, 24 to 60 Watt
Features
- Ultra-wide input voltage range
- Output voltage adjustable
- Overload and short circuit protection
- Low ripple and noise
- I/O isolation 1500 VDC
- pact, slim plastic case
- Reliable snap-on mount on DIN-rail
- Bracket for wall mount included
- 3-year product warranty
Scheme UL 508
Models
Order Code TCL 012-124 DC TCL 024-105 DC TCL 024-112 DC TCL 024-124 DC TCL 060-112 DC TCL 060-124 DC
In the TCL range of DIN-rail power supplies are 6 models for DC input voltage available. The wide input ranges of 9.5- 18 VDC resp. 18- 75 VDC means these models can be operated from all popular DC supply voltage systems. With...
