TCL060-148 - Industrial Power Supplies

Download the TCL060-148 datasheet PDF. This datasheet also covers the TCL024-105 variant, as both devices belong to the same industrial power supplies family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • For industrial, office and residential.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TCL024-105-TRACOPOWER.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TCL060-148
Manufacturer TRACO POWER
File Size 512.44 KB
Description Industrial Power Supplies
Datasheet download datasheet TCL060-148 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TCL-REM240 Industrial Power Supplies TRACO Electronic
TCL1117 800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V TelCom Semiconductor
TCL1117-2.85 800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V TelCom Semiconductor
TCL1117-3.30 800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V TelCom Semiconductor
TCL1117-5.00 800mA LOW DROPOUT POSITIVE REGULATORS ADJUSTABLE AND FIXED 2.85V/ 3.30V/ 5.00V TelCom Semiconductor

Other Datasheets by TRACO POWER

Part Number Description
TCL060-148C Industrial Power Supplies
TCL060-112 Industrial Power Supplies
TCL060-112C Industrial Power Supplies
TCL060-124 Industrial Power Supplies
TCL060-124C Industrial Power Supplies

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

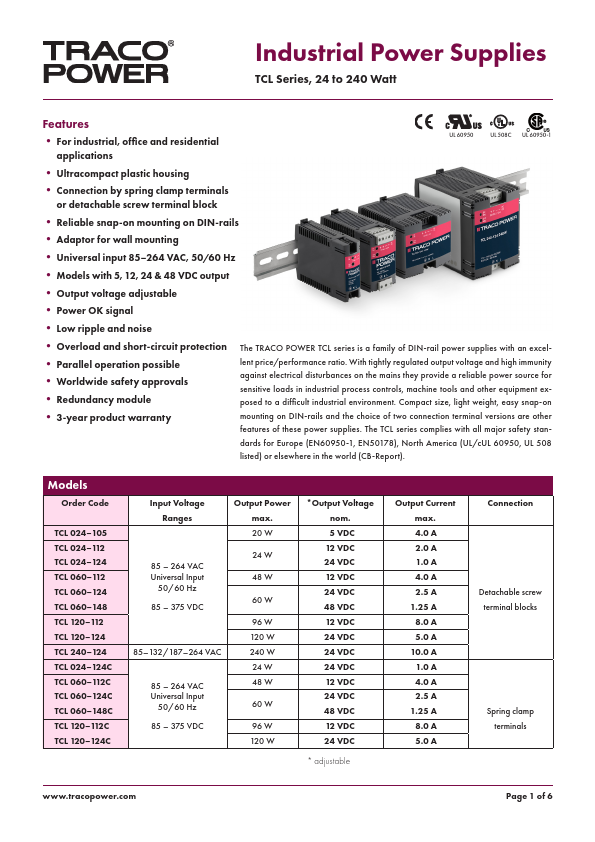

Industrial Power Supplies TCL Series, 24 to 240 Watt Features • For industrial, office and residential applications UL 60950 UL 508C UL 60950-1 • Ultracompact plastic housing • Connection by spring clamp terminals or detachable screw terminal block • Reliable snap-on mounting on DIN-rails • Adaptor for wall mounting • Universal input 85–264 VAC, 50/60 Hz • Models with 5, 12, 24 & 48 VDC output • Output voltage adjustable • Power OK signal • Low ripple and noise • Overload and short-circuit protection • Parallel operation possible • Worldwide safety approvals • Redundancy module • 3-year product warranty The TRACO POWER TCL series is a family of DIN-rail power supplies with an excellent price/performance ratio.
