TML10115 - AC/DC Power Modules

Download the TML10115 datasheet PDF. This datasheet also covers the TML05105 variant, as both devices belong to the same ac/dc power modules family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Encapsulated power Supplies.
  • PCB mount or chassis mount with screw terminals LVD not recommended for new design in.
  • Single, dual and triple output models.
  • Universal input 85.
  • 264 VAC, 47.
  • 440 Hz.
  • EMI meets EN 55022, class B and FCC, level B.
  • Low ripple and noise.
  • Short circuit and overload protection.
  • 3-year product warranty UL 60950-1 The TML series are ultra compact AC/DC power supplies in a fully encapsulated plastic case. They f.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TML05105-TRACOPOWER.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TML10115
Manufacturer TRACO POWER
File Size 216.20 KB
Description AC/DC Power Modules
Datasheet download datasheet TML10115 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TML15105 AC/DC Power Modules TRACO Electronic
TML15112 AC/DC Power Modules TRACO Electronic
TML15115 AC/DC Power Modules TRACO Electronic
TML15124 AC/DC Power Modules TRACO Electronic
TML1515A-8188FTV Wi-Fi 1T1R Module TROLINK

Other Datasheets by TRACO POWER

Part Number Description
TML10112 AC/DC Power Modules
TML10105 AC/DC Power Modules
TML10124 AC/DC Power Modules
TML10205 AC/DC Power Modules
TML10212 AC/DC Power Modules

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

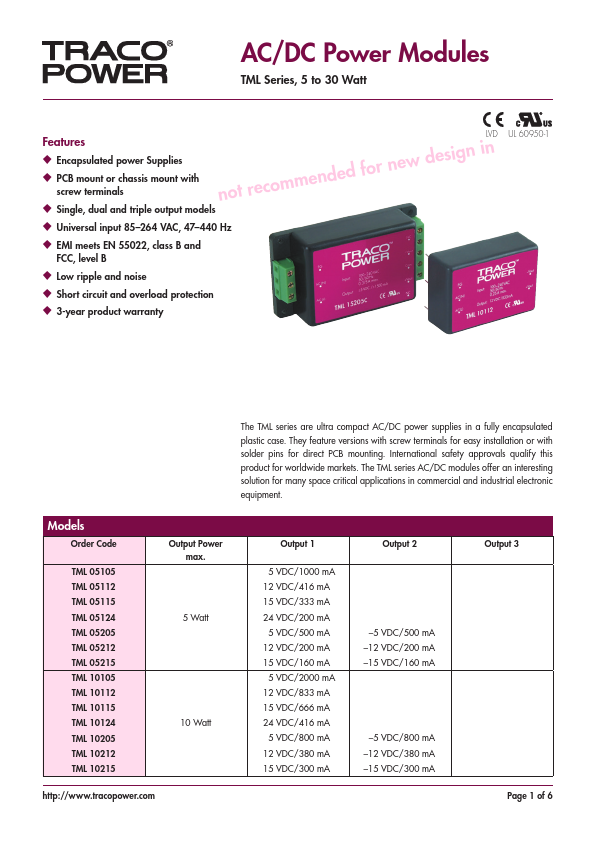

AC/DC Power Modules TML Series, 5­to 30 Watt Features ◆ Encapsulated power Supplies ◆ PCB mount or chassis mount with screw terminals LVD not recommended for new design in ◆ Single, dual and triple output models ◆ Universal input 85–264 VAC, 47–440 Hz ◆ EMI meets EN 55022, class B and FCC, level B ◆ Low ripple and noise ◆ Short circuit and overload protection ◆ 3-year product warranty UL 60950-1 The TML series are ultra compact AC/DC power supplies in a fully encapsulated plastic case. They feature versions with screw terminals for easy installation or with solder pins for direct PCB mounting. International safety approvals qualify this product for worldwide markets.
