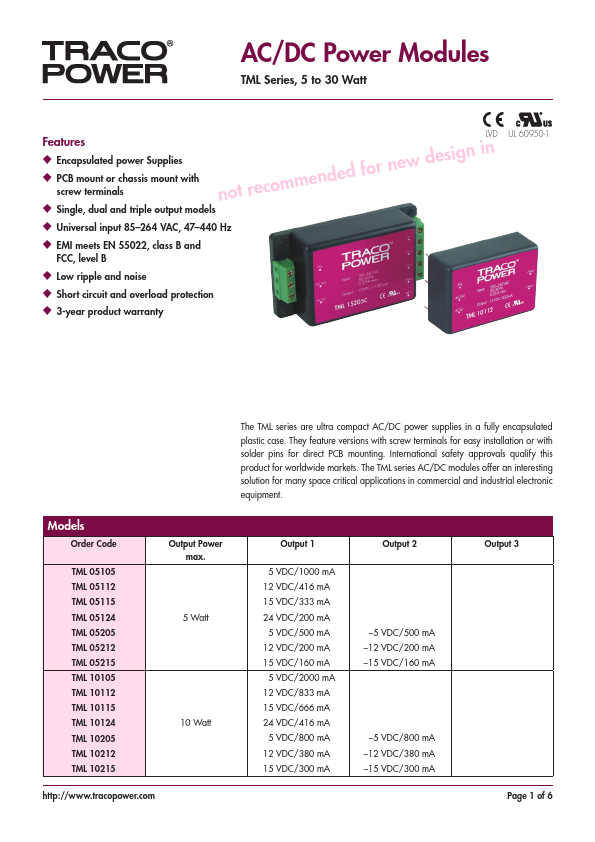

TML15112C
TML15112C is AC/DC Power Modules manufactured by TRACO POWER.
- Part of the TML05105 comparator family.
- Part of the TML05105 comparator family.
Features
- Encapsulated power Supplies
- PCB mount or chassis mount with screw terminals
LVD not remended for new design in
- Single, dual and triple output models
- Universal input 85- 264 VAC, 47- 440 Hz
- EMI meets EN 55022, class B and
FCC, level B
- Low ripple and noise
- Short circuit and overload protection
- 3-year product warranty
UL 60950-1
The TML series are ultra pact AC/DC power supplies in a fully encapsulated plastic case. They feature versions with screw terminals for easy installation or with solder pins for direct PCB mounting. International safety approvals qualify this product for worldwide markets. The TML series AC/DC modules offer an interesting solution for many space critical applications in mercial and industrial electronic equipment.
Models
Order Code
TML 05105 TML 05112 TML 05115 TML 05124 TML 05205 TML 05212 TML 05215 TML 10105 TML 10112 TML 10115 TML 10124 TML 10205 TML 10212 TML 10215
Output Power max. 5 Watt
10 Watt http://.tracopower.
Output 1
5 VDC/1000 m A 12 VDC/416 m A 15 VDC/333 m A 24 VDC/200 m A
5 VDC/500 m A 12 VDC/200 m A 15 VDC/160 m A
5 VDC/2000 m A 12 VDC/833 m A 15 VDC/666 m A 24 VDC/416 m A
5 VDC/800 m A 12 VDC/380 m A 15 VDC/300 m A
Output 2
- 5 VDC/500 m A
- 12 VDC/200 m A
- 15 VDC/160 m A
- 5 VDC/800 m A
- 12 VDC/380 m A
- 15 VDC/300 m A
Output 3 Page 1 of 6

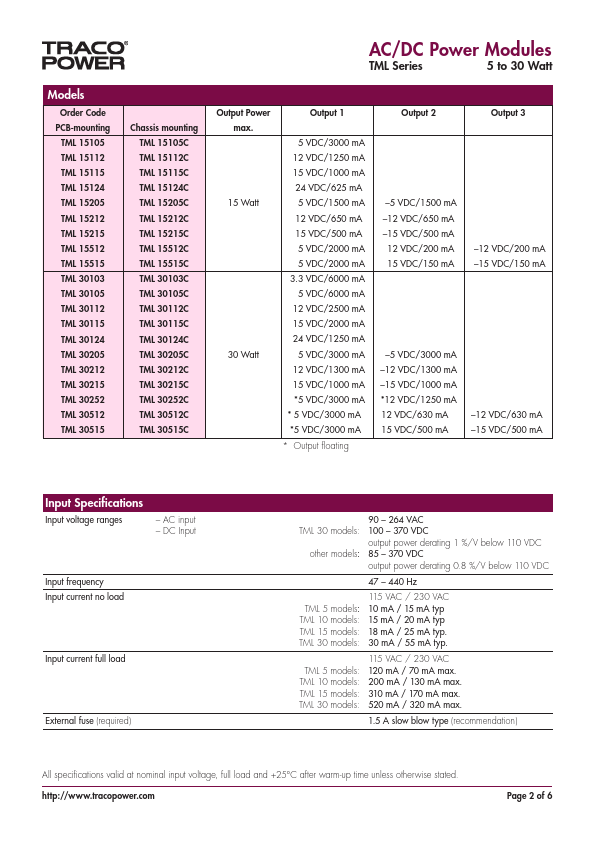

AC/DC Power Modules
TML Series
5 to 30 Watt
Models
Order Code PCB-mounting
TML 15105 TML 15112 TML 15115 TML 15124 TML 15205 TML 15212 TML 15215 TML 15512 TML 15515 TML 30103 TML 30105 TML 30112 TML 30115 TML 30124 TML 30205 TML 30212 TML 30215 TML 30252 TML 30512 TML 30515
Chassis mounting TML 15105C TML 15112C TML 15115C TML 15124C TML 15205C TML 15212C TML 15215C TML 15512C TML 15515C TML 30103C TML 30105C TML 30112C TML 30115C TML 30124C TML 30205C TML 30212C TML 30215C TML 30252C TML 30512C TML 30515C
Output Power max.
15...
