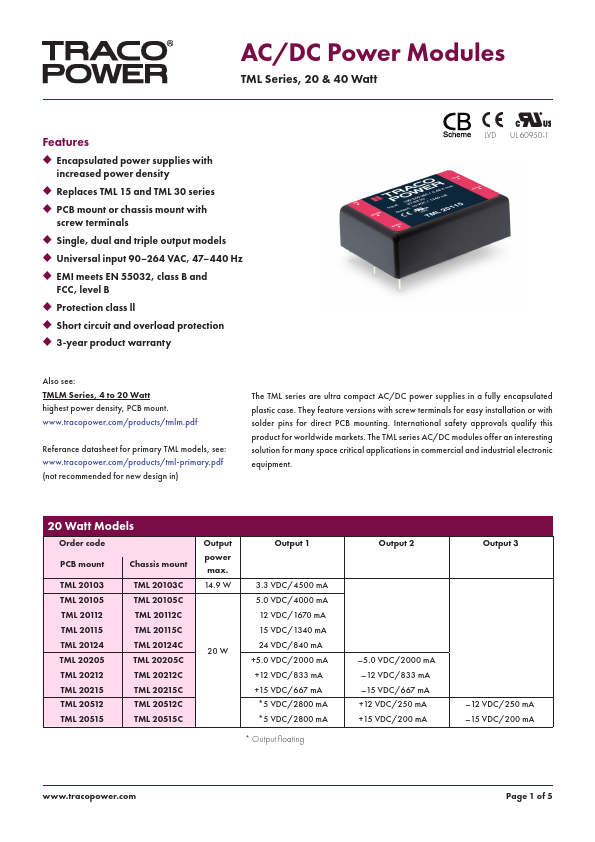

Features u Encapsulated power supplies with increased power density u Replaces TML 15 and TML 30 series u PCB mount or chassis mount with screw terminals u Single, dual and triple output models u Universal input 90- 264 VAC, 47- 440 Hz u EMI meets EN 55032, class B and FCC, level B u Protection class ll u Short circuit and overload protection u 3-year product warranty LVD UL 60950-1 Also see: TMLM Series, 4 to 20 Watt highest power density, PCB mount. .tracopower./products/tmlm.pdf Referance datasheet for primary TML models, see: .tracopower./products/tml-primary.pdf (not remended for new design in) The TML series are ultra pact AC/DC power supplies in a fully encapsulated plastic case. They feature versions with screw terminals for easy installation or with solder pins for direct PCB mounting. International safety approvals qualify this product for worldwide markets. The TML series AC/DC modules offer an interesting solution for many space critical applications in mercial and industrial electronic equipment. 20 Watt Models Order code PCB mount Chassis mount TML 20103 TML 20105 TML 20112 TML 20115 TML 20124 TML 20205 TML 20212 TML 20215 TML 20512 TML 20515 TML 20103C TML 20105C TML 20112C TML 20115C TML 20124C TML 20205C TML 20212C TML 20215C TML 20512C TML 20515C Output power max. 14.9 W 20 W Output 1 3.3 VDC/4500 m A 5.0 VDC/4000 m A 12 VDC/1670 m A 15 VDC/1340 m A 24 VDC/840 m A +5.0 VDC/2000 m A +12 VDC/833 m A +15 VDC/667 m A - 5 VDC/2800 m A - 5 VDC/2800 m A - Output floating Output 2 - 5.0 VDC/2000 m A - 12 VDC/833 m A - 15 VDC/667 m A +12 VDC/250 m A +15 VDC/200 m A Output 3 - 12 VDC/250 m A - 15 VDC/200 m A .tracopower. Page 1 of 5 AC/DC Power Modules TML Series 20 & 40 Watt 40 Watt Models Order code PCB mount Chassis mount TML 40103 TML 40105 TML 40112 TML 40115 TML 40124 TML 40205 TML 40212 TML 40215 TML 40252 TML 40254 TML 40512 TML 40515 TML 40103C TML 40105C TML 40112C TML 40115C TML 40124C TML 40205C TML 40212C TML 40215C TML 40252C TML 40254C TML...
