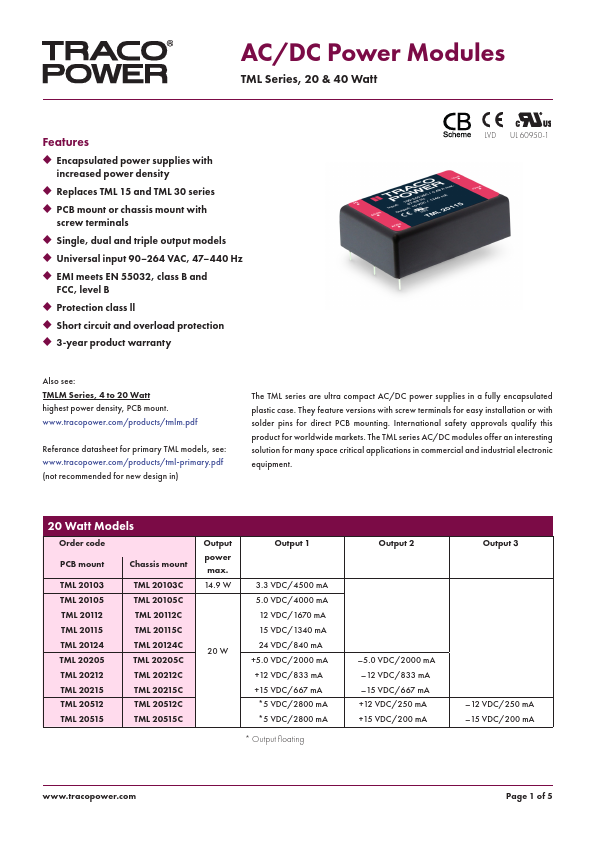

AC/DC Power Modules
TML Series, 20& 40 Watt
Features u Encapsulated power supplies with
increased power density
u Replaces TML 15 and TML 30 series u PCB mount or chassis mount with
screw terminals
u Single, dual and triple output models u Universal input 90–264 VAC, 47–440 Hz u EMI meets EN 55032, class B and
FCC, level B
u Protection class ll u Short circuit and overload protection u 3-year product warranty
LVD UL 60950-1
Also see: TMLM Series, 4 to 20 Watt highest power density, PCB mount. www.tracopower.com/products/tmlm.pdf
Referance datasheet for primary TML models, see: www.tracopower.com/products/tml-primary.pdf (not recommended for new design in)
The TML series are ultra compact AC/DC power supplies in a fully encapsulated plastic case.
TML20515C Datasheet
