TML30115C
TML30115C is AC/DC Power Modules manufactured by TRACO POWER.
- Part of the TML05105 comparator family.
- Part of the TML05105 comparator family.

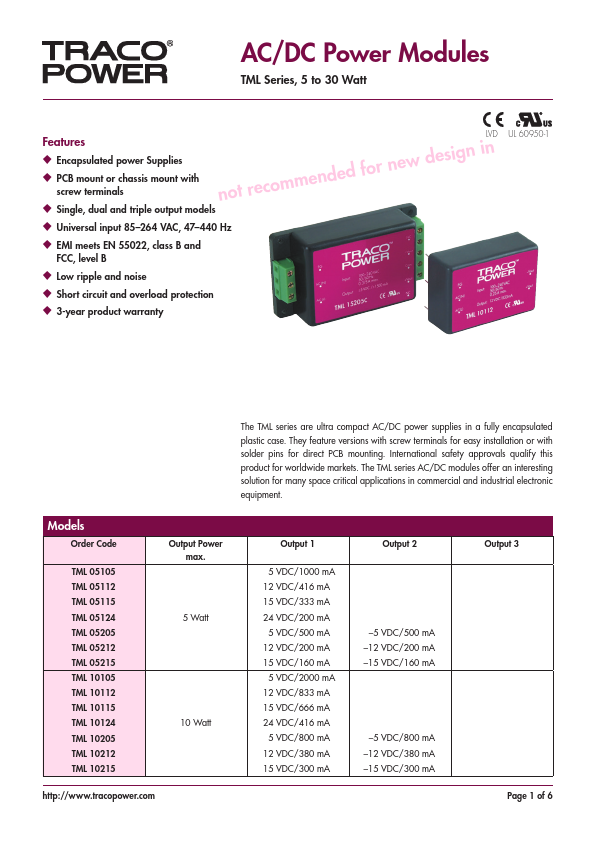

AC/DC Power Modules
TML Series, 5to 30 Watt
Features
- Encapsulated power Supplies
- PCB mount or chassis mount with screw terminals
LVD not remended for new design in
- Single, dual and triple output models
- Universal input 85- 264 VAC, 47- 440 Hz
- EMI meets EN 55022, class B and
FCC, level B
- Low ripple and noise
- Short circuit and overload protection
- 3-year product warranty
UL 60950-1
The TML series are ultra pact AC/DC power supplies in a fully encapsulated plastic case. They feature versions with screw terminals for easy installation or with solder pins for direct PCB mounting. International safety approvals qualify this product for worldwide markets. The TML series AC/DC modules offer an interesting solution for many space critical applications in mercial and industrial electronic equipment.
Models
Order Code
TML 05105 TML 05112 TML 05115 TML 05124 TML 05205 TML 05212 TML 05215 TML 10105 TML 10112 TML 10115 TML 10124 TML 10205 TML 10212 TML 10215
Output Power max. 5 Watt
10 Watt http://.tracopower.
Output 1
5 VDC/1000 m A 12 VDC/416 m A 15 VDC/333 m A 24 VDC/200 m A
5 VDC/500 m A 12 VDC/200 m A 15 VDC/160 m A
5 VDC/2000 m A 12 VDC/833 m A 15 VDC/666 m A 24 VDC/416 m A
5 VDC/800 m A 12 VDC/380 m A 15 VDC/300 m A
Output 2
- 5 VDC/500 m A
- 12 VDC/200 m A
- 15 VDC/160 m A
- 5 VDC/800 m...
