TML30124C Datasheet | TRACO POWER

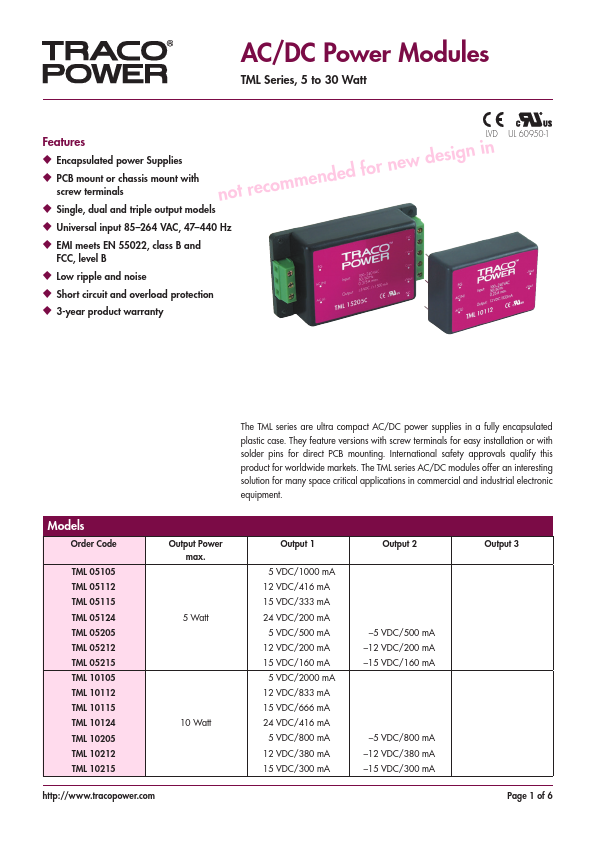

AC/DC Power Modules TML Series, 5­to 30 Watt Features - Encapsulated power Supplies - PCB mount or chassis mount with screw terminals LVD not remended for new design in - Single, dual and triple output models - Universal input 85- 264 VAC, 47- 440 Hz - EMI meets EN 55022, class B and FCC, level B - Low ripple and noise - Short circuit and overload protection - 3-year product warranty UL 60950-1 The TML series are ultra pact AC/DC power supplies in a fully encapsulated plastic case. They feature versions with screw terminals for easy installation or with solder pins for direct PCB mounting. International safety approvals qualify this product for worldwide markets. The TML series AC/DC modules offer an interesting solution for many space critical applications in mercial and industrial electronic equipment. Models Order Code TML 05105 TML 05112 TML 05115 TML 05124 TML 05205 TML 05212 TML 05215 TML 10105 TML 10112 TML 10115 TML 10124 TML 10205 TML 10212 TML 10215 Output Power max. 5 Watt 10 Watt http://.tracopower. Output 1 5 VDC/1000 m A 12 VDC/416 m A 15 VDC/333 m A 24 VDC/200 m A 5 VDC/500 m A 12 VDC/200 m A 15 VDC/160 m A 5 VDC/2000 m A 12 VDC/833 m A 15 VDC/666 m A 24 VDC/416 m A 5 VDC/800 m A 12 VDC/380 m A 15 VDC/300 m A Output 2 - 5 VDC/500 m A - 12 VDC/200 m A - 15 VDC/160 m A - 5 VDC/800 m...
