TML40115C - AC/DC Power Modules

Download the TML40115C datasheet PDF. This datasheet also covers the TML20103 variant, as both devices belong to the same ac/dc power modules family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • u Encapsulated power supplies with increased power density u Replaces TML 15 and TML 30 series u PCB mount or chassis mount with screw terminals u Single, dual and triple output models u Universal input 90.
  • 264 VAC, 47.
  • 440 Hz u EMI meets EN 55032, class B and FCC, level B u Protection class ll u Short circuit and overload protection u 3-year product warranty LVD UL 60950-1 Also see: TMLM Series, 4 to 20 Watt highest power density, PCB mount. www. tracopower. com/products/tmlm. pdf.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TML20103-TRACOPOWER.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TML40115C
Manufacturer TRACO POWER
File Size 333.71 KB
Description AC/DC Power Modules
Datasheet download datasheet TML40115C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TML15105 AC/DC Power Modules TRACO Electronic
TML15112 AC/DC Power Modules TRACO Electronic
TML15115 AC/DC Power Modules TRACO Electronic
TML15124 AC/DC Power Modules TRACO Electronic
TML1515A-8188FTV Wi-Fi 1T1R Module TROLINK

Other Datasheets by TRACO POWER

Part Number Description
TML40115 AC/DC Power Modules
TML40112 AC/DC Power Modules
TML40112C AC/DC Power Modules
TML40103 AC/DC Power Modules
TML40103C AC/DC Power Modules

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

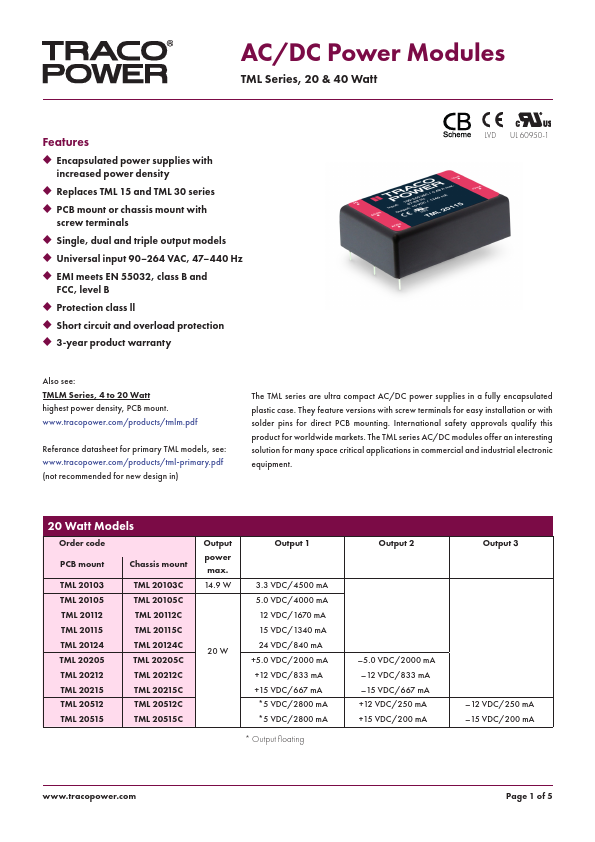

AC/DC Power Modules TML Series, 20­& 40 Watt Features u Encapsulated power supplies with increased power density u Replaces TML 15 and TML 30 series u PCB mount or chassis mount with screw terminals u Single, dual and triple output models u Universal input 90–264 VAC, 47–440 Hz u EMI meets EN 55032, class B and FCC, level B u Protection class ll u Short circuit and overload protection u 3-year product warranty LVD UL 60950-1 Also see: TMLM Series, 4 to 20 Watt highest power density, PCB mount. www.tracopower.com/products/tmlm.pdf Referance datasheet for primary TML models, see: www.tracopower.com/products/tml-primary.pdf (not recommended for new design in) The TML series are ultra compact AC/DC power supplies in a fully encapsulated plastic case.
