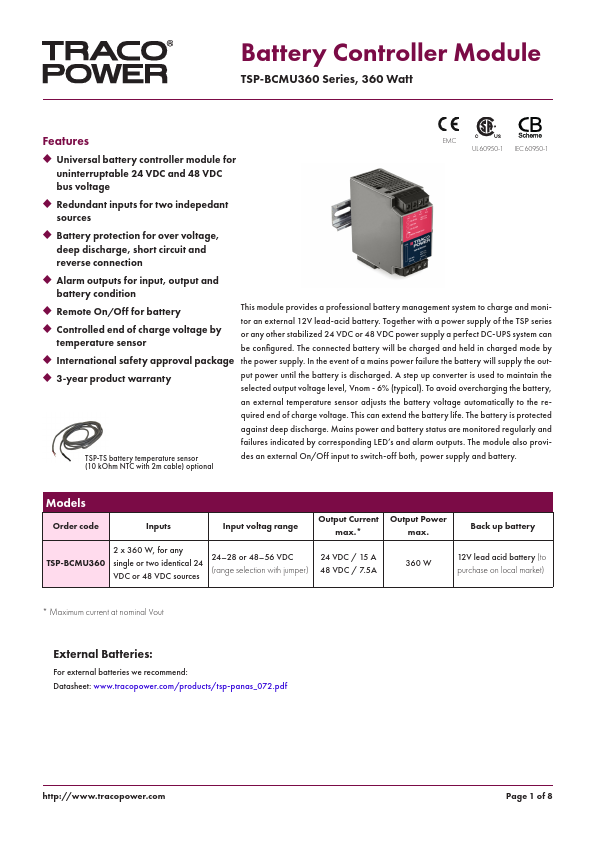

TSP-BCMU360 Datasheet | TRACO POWER

Features u Universal battery controller module for uninterruptable 24 VDC and 48 VDC bus voltage EMC UL 60950-1 IEC 60950-1 u Redundant inputs for two indepedant sources u Battery protection for over voltage, deep discharge, short circuit and reverse connection u Alarm outputs for input, output and battery condition u Remote On/Off for battery u Controlled end of charge voltage by temperature sensor This module provides a professional battery management system to charge and monitor an external 12V lead-acid battery. Together with a power supply of the TSP series or any other stabilized 24 VDC or 48 VDC power supply a perfect DC-UPS system can be configured. The connected battery will be charged and held in charged mode by u International safety approval package the power supply. In the event of a mains power failure the battery will supply the out- u 3-year product warranty put power until the battery is discharged. A step up converter is used to maintain the selected output voltage level, Vnom - 6% (typical). To avoid overcharging the battery, an external temperature sensor adjusts the battery voltage automatically to the re- quired end of charge voltage. This can extend the battery life. The battery is protected against deep discharge. Mains power and battery status are monitored regularly and failures indicated by corresponding LED’s and alarm outputs. The module also provi- TSP-TS battery temperature sensor (10 k Ohm NTC with 2m cable) optional des an external On/Off input to switch-off both, power supply and battery. Models Order code Inputs Input voltag range Output Current Output Power max.- max. Back up battery 2 x 360 W, for any 24- 28 or 48- 56 VDC TSP-BCMU360 single or two identical 24 (range selection with jumper) VDC or 48 VDC sources 24 VDC / 15 A 48 VDC / 7.5A 360 W 12V lead acid battery (to purchase on local market) - Maximum current at nominal Vout External Batteries: For external batteries we remend: Datasheet:...
