FF-130SH-11340
FF-130SH-11340 is Precious Metal-brush Motors/Cabron-brushMotors manufactured by TRONSUN MOTOR.
- Part of the FF-130PH-18130 comparator family.
- Part of the FF-130PH-18130 comparator family.

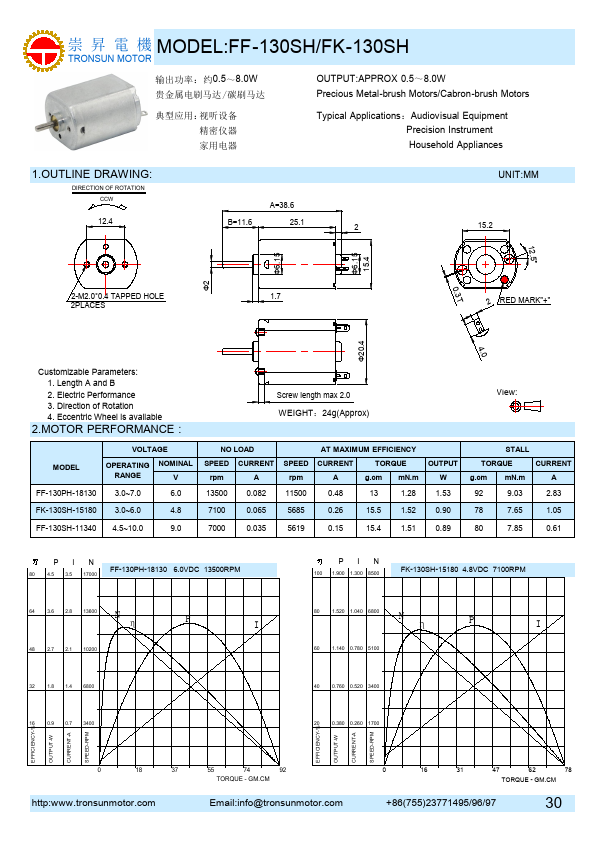

崇 昇 電 機 MODEL:FF-130SH/FK-130SH
TRONSUN MOTOR
输出功率：约0.5～8.0W 贵金属电刷马达 /碳刷马达
OUTPUT:APPROX 0.5～8.0W Precious Metal-brush Motors/Cabron-brush Motors
典型应用：视听设备 精密仪器 家用电器
Typical Applications：Audiovisual Equipment Precision Instrument Household Appliances
1.OUTLINE DRAWING:
DIRECTION OF ROTATION CCW
A=38.6
B=11.6
UNIT:MM
Φ6.15 15.4
Φ2 Φ6.15
12.5°
4.0 0.3T
2-M2.0- 0.4 TAPPED HOLE
2PLACES
2 RED MARK"+"
Φ20.4
Customizable Parameters: 1. Length A and B 2. Electric Performance 3. Direction of Rotation 4. Eccentric Wheel is available
2.MOTOR PERFORMANCE :
Screw length max 2.0 W EIGHT ： 24g(Approx)
View:
VOLTAGE
MODEL
OPERATING NOMINAL
RANGE
FF-130PH-1813...
