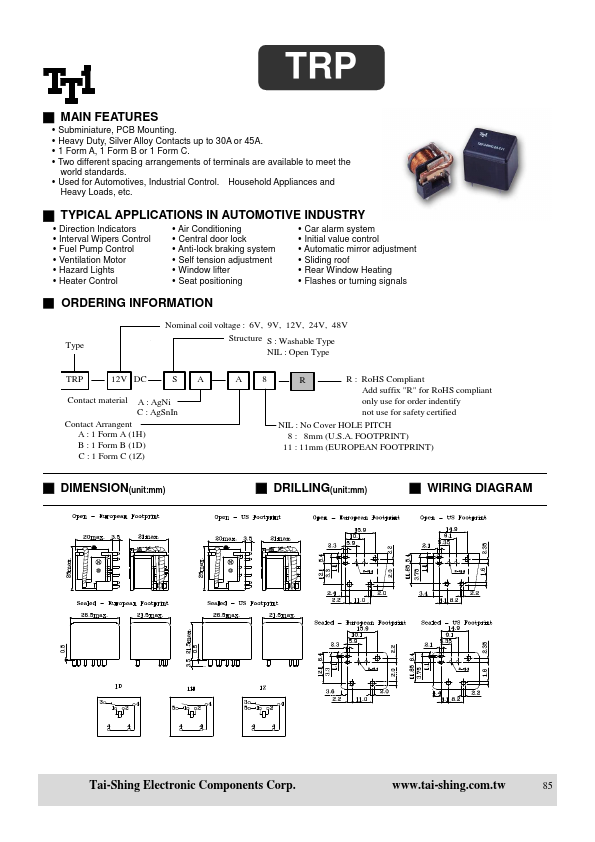

Datasheet Summary
- MAIN Features
- Subminiature, PCB Mounting.
- Heavy Duty, Silver Alloy Contacts up to 30A or 45A.
- 1 Form A, 1 Form B or 1 Form C.
- Two different spacing arrangements of terminals are available to meet the world standards.
- Used for Automotives, Industrial Control. Household Appliances and
Heavy Loads, etc.
- TYPICAL APPLICATIONS IN AUTOMOTIVE INDUSTRY
- Direction Indicators
- Interval Wipers Control
- Fuel Pump Control
- Ventilation Motor
- Hazard Lights
- Heater Control
- Air Conditioning
- Central door lock
- Anti-lock braking system
- Self tension adjustment
- Window lifter
- Seat positioning
- Car alarm system
- Initial value control
- Automatic mirror adjustment
-...
