BAT42W - 200mW Surface Mount Schottky Barrier Diode

Key Features

  • ◇ Low forward voltage drop ◇ Surface mount package ideally suited for automatic insertion ◇ Moisture sensitivity level 1 ◇ High temperature soldering guaranteed : 260oC/10 seconds ◇ Green compond (Halogen free) with suffix "G" on packing code and prefix "G" on date code Mechanical Data ◇ Case : SOD-123 plastic package ◇ Terminal : Matte tin plated, lead free, solderable per MIL-STD-202, method 208 guaranteed ◇ Polarity : Color band ◇ High temperature soldering guaranteed : 260oC/10 second ◇ Mark.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAT42W Schottky Diodes General Semiconductor
BAT42W 200mA Surface Mount Small Signal Diodes CITC
BAT42W Surface Mount Schottky Barrier Diodes JGD
BAT42W SCHOTTKY DIODES AiT Components
BAT42W SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER KD

Other Datasheets by Taiwan Semiconductor

Part Number Description
BAT42WS 0.2W Surface Mount Flat Lead Fast Switching Schottky Barrier Diode
BAT42 Hermetically Sealed Glass Fast Switching Schottky Barrier Diode
BAT43 Hermetically Sealed Glass Fast Switching Schottky Barrier Diode
BAT43W 200mW Surface Mount Schottky Barrier Diode
BAT43WS 0.2W Surface Mount Flat Lead Fast Switching Schottky Barrier Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

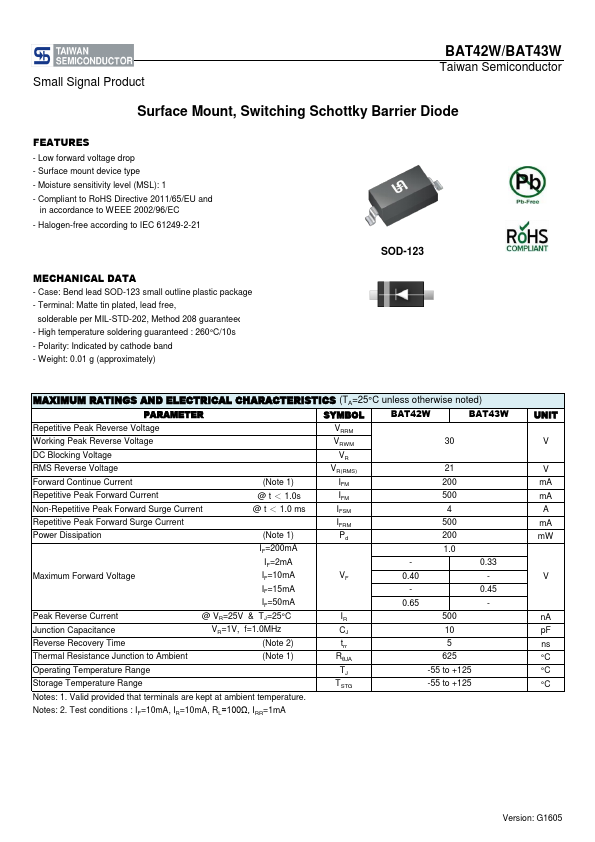

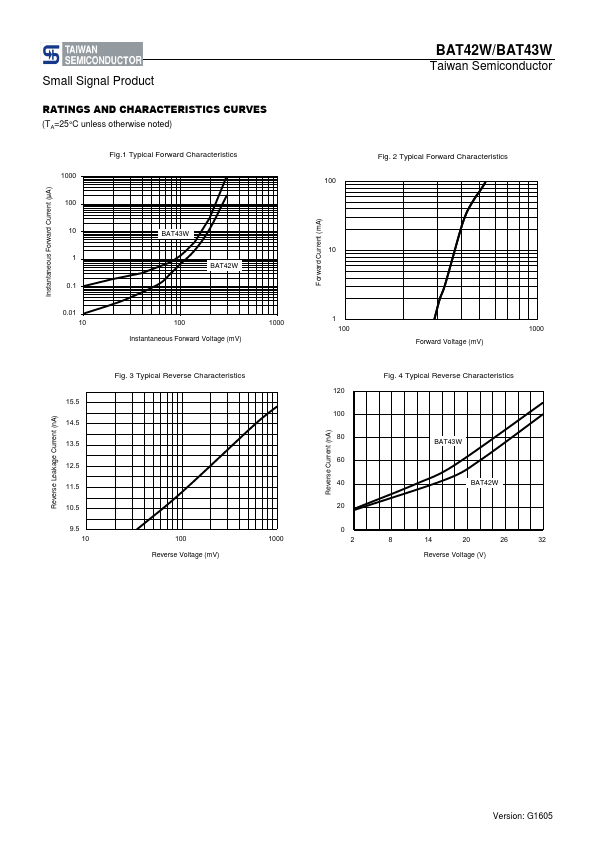

Small Signal Product CREAT BY ART BAT42W - BAT43W 200mW Surface Mount Schottky Barrier Diode Switching Schottky Barrier Diodes Features ◇ Low forward voltage drop ◇ Surface mount package ideally suited for automatic insertion ◇ Moisture sensitivity level 1 ◇ High temperature soldering guaranteed : 260oC/10 seconds ◇ Green compond (Halogen free) with suffix "G" on packing code and prefix "G" on date code Mechanical Data ◇ Case : SOD-123 plastic package ◇ Terminal : Matte tin plated, lead free, solderable per MIL-STD-202, method 208 guaranteed ◇ Polarity : Color band ◇ High temperature soldering guaranteed : 260oC/10 second ◇ Marking : BAT42W - S7 BAT43W - S8 ◇ Weight : 0.
