BAV70 - 225mW SMD Switching Diode

Product Overview

Taiwan Semiconductor

Datasheet Details

Part number	BAV70
Manufacturer	Taiwan Semiconductor
File Size	116.14 KB
Description	225mW SMD Switching Diode
Datasheet	BAV70 Datasheet

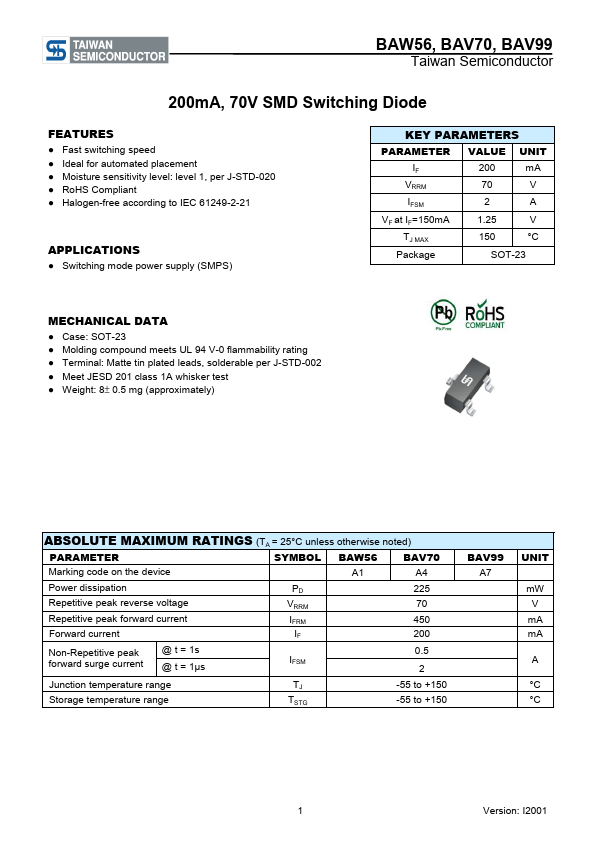

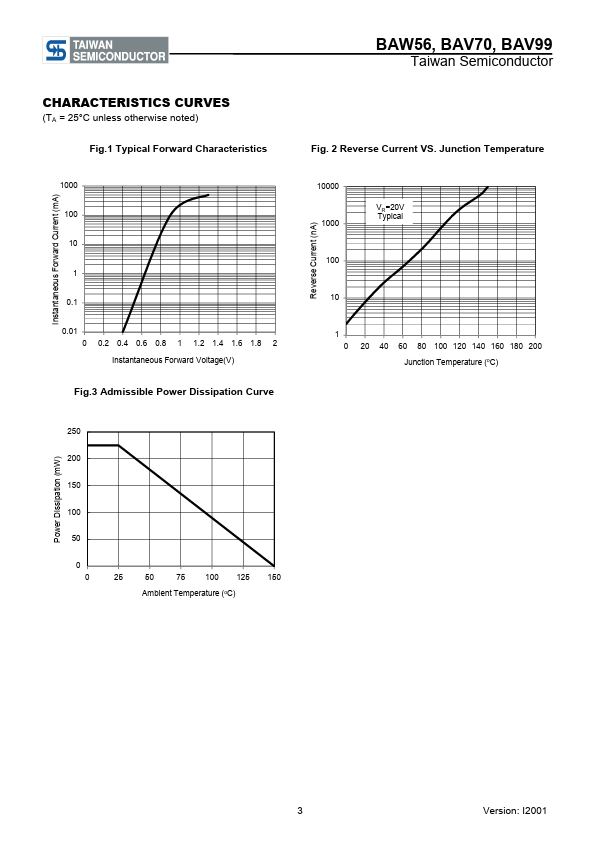

Additional preview pages of the BAV70 datasheet.

Product details

Description

Green compound Green compound Green compound Document Number: DS_S1404011 Version: H14 Small Signal Product PACKAGE OUTLINE DIMENSIONS SUGGEST PAD LAYOUT Pin Configuration BAW56, BAV70, BAV99 Taiwan Semiconductor DIM.A B C D E F G H Unit (mm) Min Max 2.70 3.10 1.10 1.50 0.30 0.51 1.78 2.04 2.10 2.64 0.89 1.30 0.55 REF 0.1 REF Unit (inch) Min Max 0.106 0.122 0.043 0.059 0.012 0.020 0.070 0.080 0.083 0.104 0.035 0.051 0.022 REF 0.004 REF DIM.Z X Y C E Unit (mm) Typ.2.9 0.8 0.9 2.0 1.35

Features

225mW SMD Switching Diode - Fast switching speed - Surface mount device type - Moisture sensitivity level 1 - Matte Tin(Sn) lead finish with Nickel(Ni) underplate - Pb free and RoHS compliant - Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code BAW56, BAV70, BAV99 Taiwan Semiconductor.
