BAV99 - 225mW SMD Switching Diode

Download the BAV99 datasheet PDF. This datasheet also covers the BAV70 variant, as both devices belong to the same 225mw smd switching diode family and are provided as variant models within a single manufacturer datasheet.

General Description

DIM.

2.70 3.10 1.10 1.50 0.30 0.51 1.78 2.04 2.

Key Features

  • 225mW SMD Switching Diode - Fast switching speed - Surface mount device type - Moisture sensitivity level 1 - Matte Tin(Sn) lead finish with Nickel(Ni) underplate - Pb free and RoHS compliant - Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code BAW56, BAV70, BAV99 Taiwan Semiconductor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BAV70-TaiwanSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BAV99 Silicon Epitaxial Planar Switching Diodes Toshiba
BAV99 SWITCHING DIODE SMC Diode
BAV99 Small Signal Switching Diode Vishay
BAV99 SMD Small Signal Diodes Diotec
BAV99 200mA 70V High Conductance Ultra-Fast Switching Diode ON Semiconductor

Other Datasheets by Taiwan Semiconductor

Part Number Description
BAV99S 250mW High Speed Switching Array
BAV99W Switching Diode Array
BAV100 Hermetically Sealed Glass High Voltage Switching Diodes
BAV101 Hermetically Sealed Glass High Voltage Switching Diodes
BAV102 Hermetically Sealed Glass High Voltage Switching Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

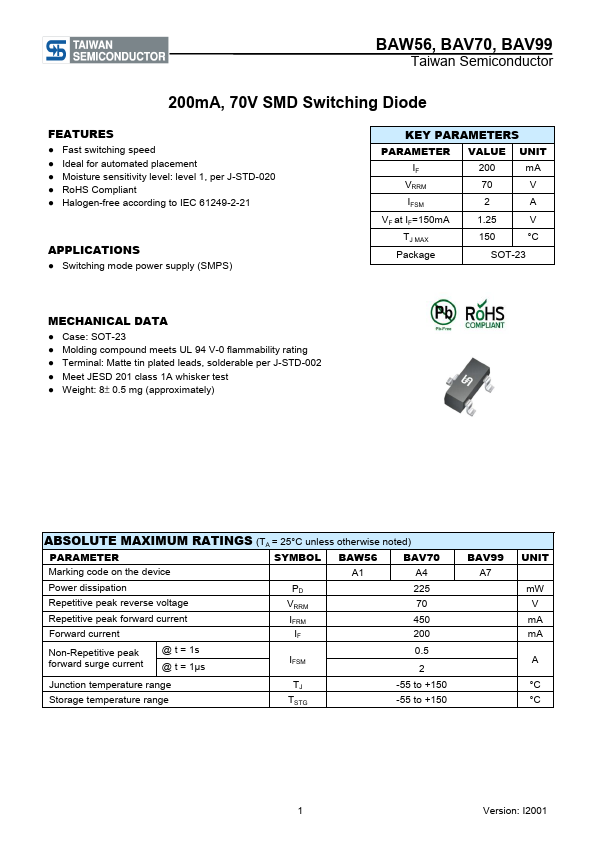

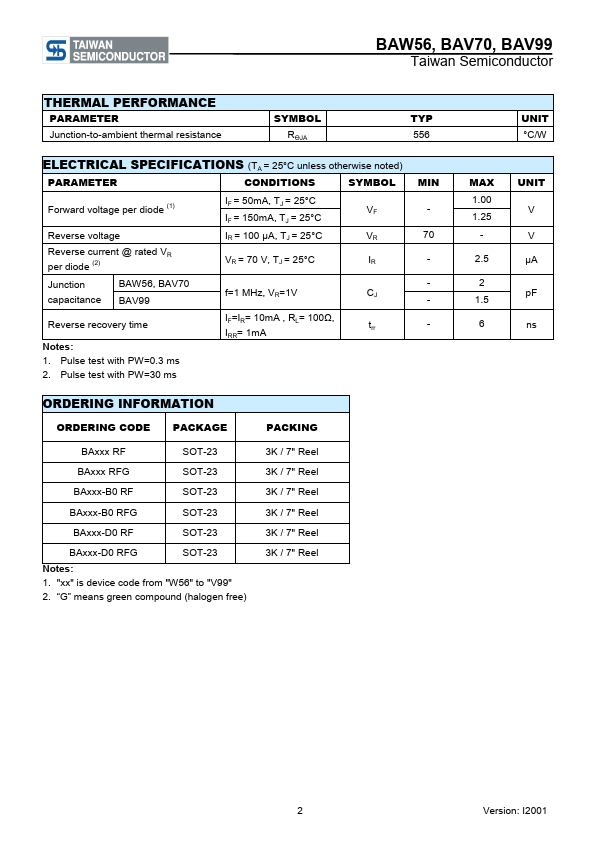

Small Signal Product FEATURES 225mW SMD Switching Diode - Fast switching speed - Surface mount device type - Moisture sensitivity level 1 - Matte Tin(Sn) lead finish with Nickel(Ni) underplate - Pb free and RoHS compliant - Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code BAW56, BAV70, BAV99 Taiwan Semiconductor MECHANICAL DATA - Case: SOT-23 small outline plastic package - Terminal: Matte tin plated, lead free, solderable per MIL-STD-202, Method 208 guaranteed - High temperature soldering guaranteed: 260oC/10s - Weight: 0.
