DTA114EM - PNP Digital Transistor

Key Features

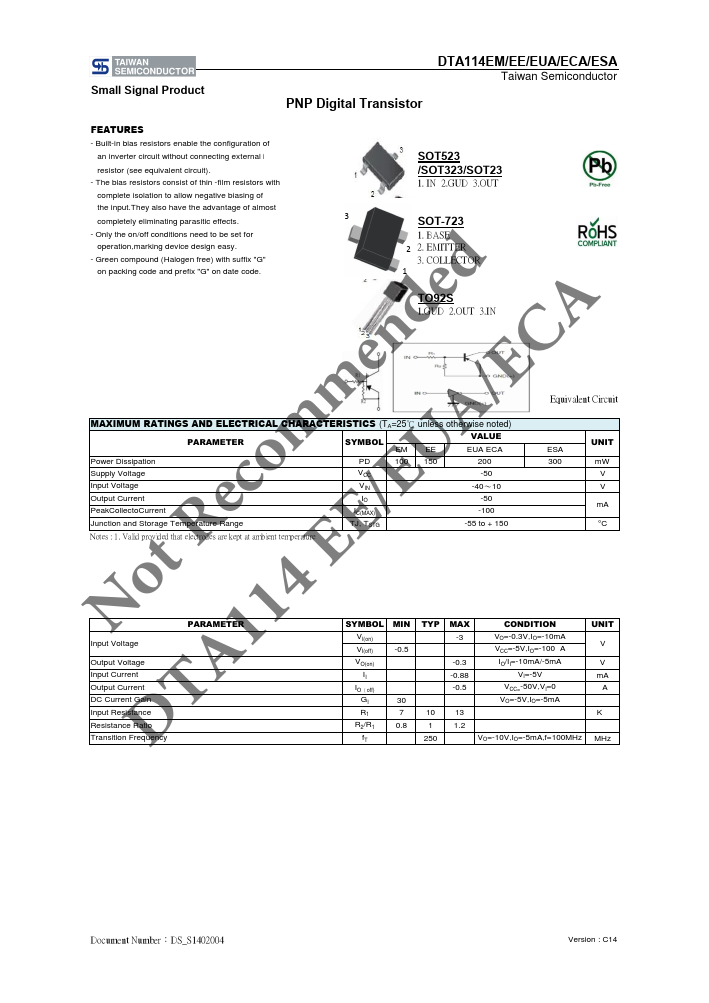

  • Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistor (see equivalent circuit).
  • TheThe bias resistors consist of thin -film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completel yeliminating parasitic effects.
  • Only the on/off conditions need to be set for operation,marking device design easy.
  • Green compound (Halogen free) with suffix "G" on packi.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DTA114EM BIAS RESISTOR TRANSISTOR AiT Semiconductor
DTA114EM PNP Digital Transistors SeCoS
DTA114EM Digital transistors Rohm
DTA114EM PNP Digital Transistor JCET
DTA114EM Bias Resistor Transistor PNP Silicon WEITRON

Other Datasheets by Taiwan Semiconductor

Part Number Description
DTA114ECA PNP Digital Transistor
DTA114EE PNP Digital Transistor
DTA114ESA PNP Digital Transistor
DTA114EUA PNP Digital Transistor
DTA114TCA PNP Digital Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

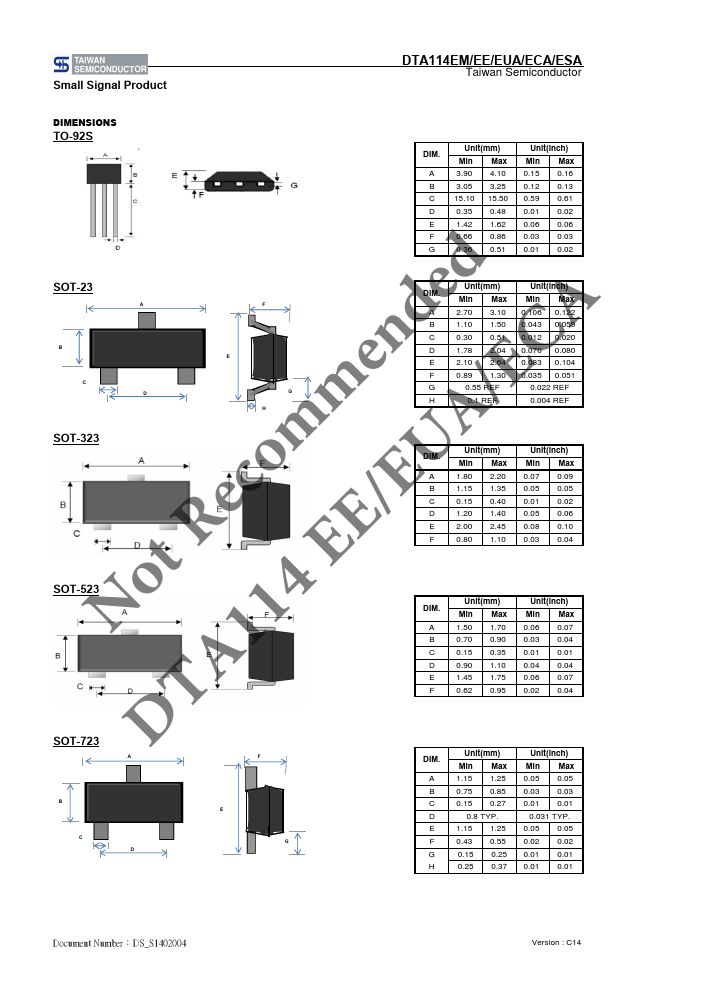

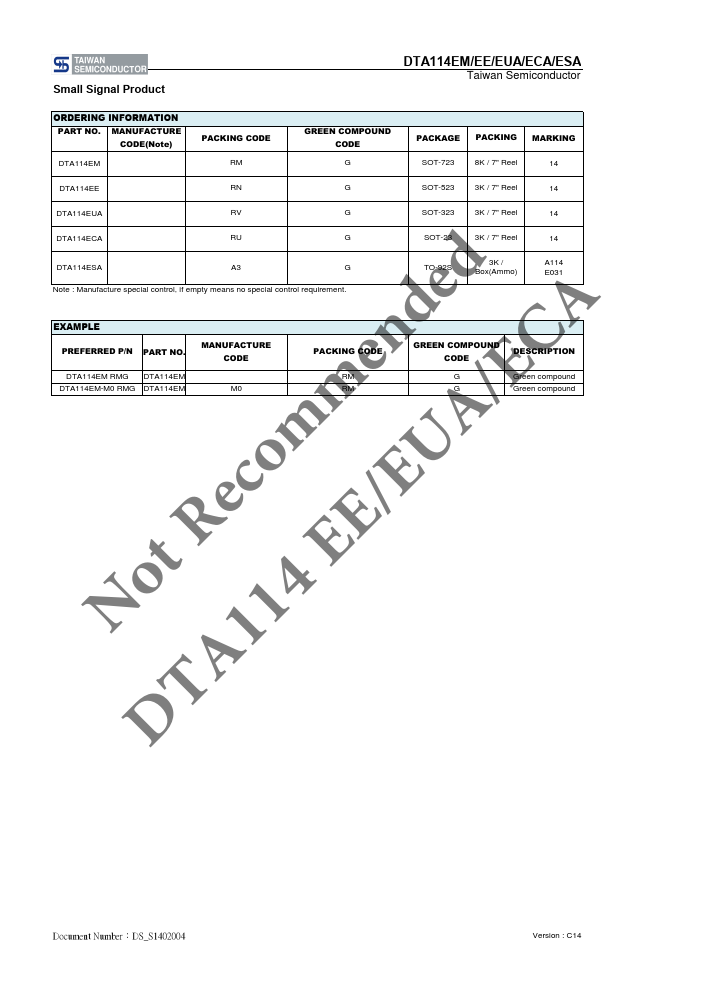

DTA114 EM/EE/EUA/ECA/ESA PNP Digital Transistor Small Signal Diode Features Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistor (see equivalent circuit). TheThe bias resistors consist of thin -film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost completel yeliminating parasitic effects. Only the on/off conditions need to be set for operation,marking device design easy.  Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code. 3 SOT-723/SOT-523 SOT-323/SOT-23 Ordering Information Package Part No. Packing Marking SOT-723 DTA114 EM 8K / 7" Reel 14 1 2 1.IN 2.GND 3.
