SS25 Datasheet (Taiwan Semiconductor)

Part SS25
Description Schottky Barrier Surface Mount Rectifier
Manufacturer Taiwan Semiconductor
Size 436.65 KB
SS25 Datasheet (PDF) Download
Pricing from 0.15592 USD, available from Avnet and Newark.Powered by Octopart
🏠
Taiwan Semiconductor

SS25 Overview

Key Specifications

Mount Type: Surface Mount
Pins: 2
Max Operating Temp: 125 °C
Min Operating Temp: -65 °C

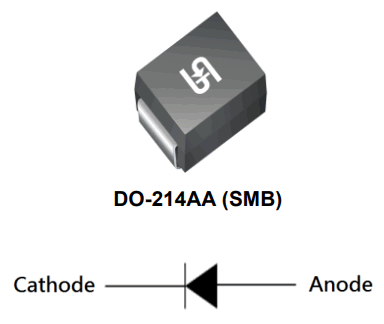

SS25 reference image

Representative SS25 image (package may vary by manufacturer)

Key Features

  • Low power loss, high efficiency
  • Ideal for automated placement
  • Guard ring for over-voltage protection
  • High surge current capability
  • Moisture sensitivity level: level 1, per J-STD-020
SS25 datasheet preview
