CCR-38S - Normally Open Coaxial Switch

Description

The CCR-38S/CR-38S is a broadband, multi-throw, electromechanical coaxial switch designed to switch a microwave signal from a common input to any of 3, 4, 5, or 6 outputs.

Features

  • 5,000,000 cycles 1,000,000 cycles Connector Type SMA Humidity (Moisture Seal) Available Weight 6 oz. (170.1g) (max. ).

📥 Download Datasheet

Datasheet Details

Part number CCR-38S
Manufacturer Teledyne
File Size 842.00 KB
Description Normally Open Coaxial Switch
Datasheet download datasheet CCR-38S Datasheet

📁 Similar Datasheet

  • CCR-375-1 - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
  • CCR-375-1B - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
  • CCR-100-2 - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
  • CCR-100-2B - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
  • CCR-1000-1 - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
  • CCR-230-1 - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
  • CCR-230-2 - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
  • CCR-250-1 - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
  • CCR-250-1B - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
  • CCR-250-2 - (CCR-xxx) Surface Mount Resistors With Cover & Tabs (Component General)
Other Datasheets by Teledyne
  • CCR-38U - Normally Open SPnT Coaxial Switch
  • CCR-33S - Failsafe SPDT Coaxial Switch
  • CCR-40K - Failsafe SPDT Coaxial Switch
  • CCR-53S - Latching SPDT Coaxial Switch
  • CCR-58S - Normally Open Coaxial Switch
  • CCR-59S - Latching Coaxial Switch
  • CCRT-40 - Latching SPDT Coaxial Switch

Full PDF Text Transcription

Click to expand full text

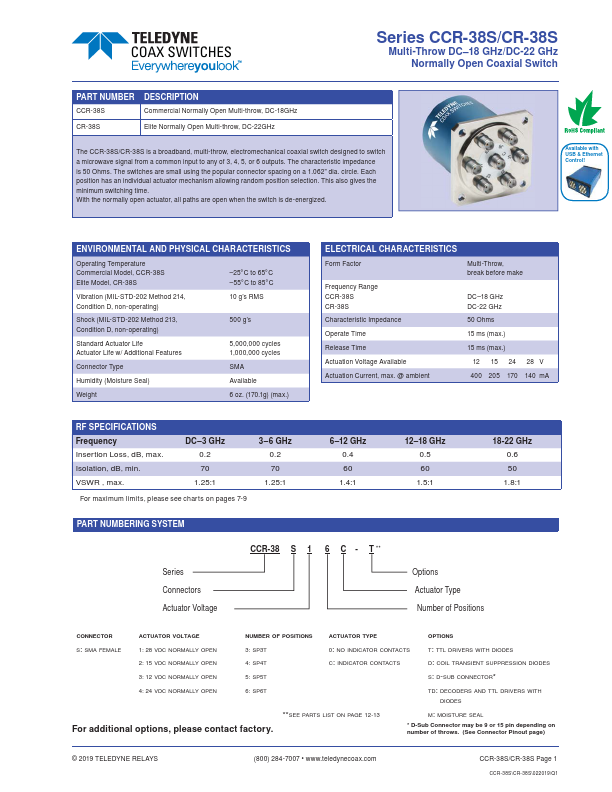

COAX SWITCHES Series CCR-38S/CR-38S Multi-Throw DC–18 GHz/DC-22 GHz Normally Open Coaxial Switch PART NUMBER DESCRIPTION CCR-38S Commercial Normally Open Multi-throw, DC-18GHz CR-38S Elite Normally Open Multi-throw, DC-22GHz The CCR-38S/CR-38S is a broadband, multi-throw, electromechanical coaxial switch designed to switch a microwave signal from a common input to any of 3, 4, 5, or 6 outputs. The characteristic impedance is 50 Ohms. The switches are small using the popular connector spacing on a 1.062” dia. circle. Each position has an individual actuator mechanism allowing random position selection. This also gives the minimum switching time. With the normally open actuator, all paths are open when the switch is de-energized.
