CR-38S - Normally Open Coaxial Switch

Description

The CCR-38S/CR-38S is a broadband, multi-throw, electromechanical coaxial switch designed to switch a microwave signal from a common input to any of 3, 4, 5, or 6 outputs.

Features

  • 5,000,000 cycles 1,000,000 cycles Connector Type SMA Humidity (Moisture Seal) Available Weight 6 oz. (170.1g) (max. ).

📥 Download Datasheet

Datasheet Details

Part number CR-38S
Manufacturer Teledyne
File Size 834.38 KB
Description Normally Open Coaxial Switch
Datasheet download datasheet CR-38S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Teledyne

Part Number Description
CR-38U Normally Open SPnT Coaxial Switch
CR-33S Failsafe SPDT Coaxial Switch
CR-40K Failsafe SPDT Coaxial Switch
CR-53S Latching SPDT Coaxial Switch
CR-58S Normally Open Coaxial Switch

Full PDF Text Transcription

Click to expand full text

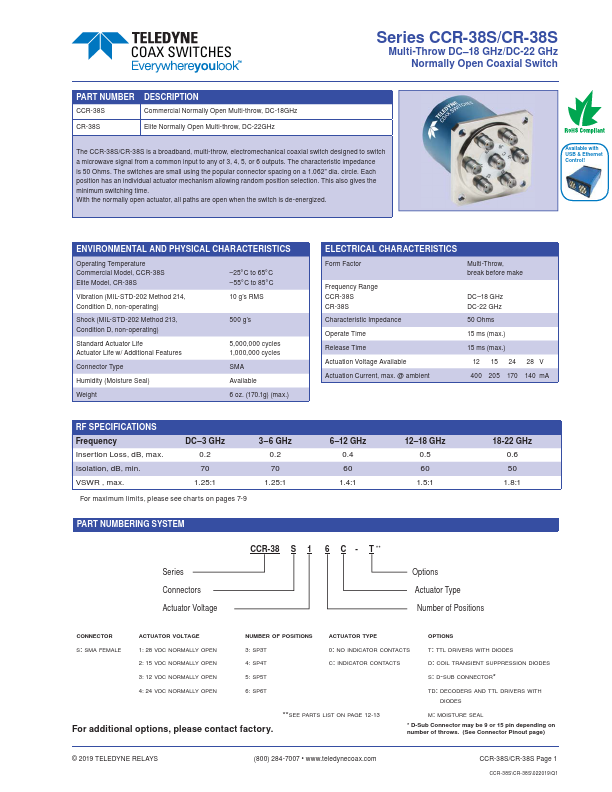

COAX SWITCHES Series CCR-38S/CR-38S Multi-Throw DC–18 GHz/DC-22 GHz Normally Open Coaxial Switch PART NUMBER DESCRIPTION CCR-38S Commercial Normally Open Multi-throw, DC-18GHz CR-38S Elite Normally Open Multi-throw, DC-22GHz The CCR-38S/CR-38S is a broadband, multi-throw, electromechanical coaxial switch designed to switch a microwave signal from a common input to any of 3, 4, 5, or 6 outputs. The characteristic impedance is 50 Ohms. The switches are small using the popular connector spacing on a 1.062” dia. circle. Each position has an individual actuator mechanism allowing random position selection. This also gives the minimum switching time. With the normally open actuator, all paths are open when the switch is de-energized.
