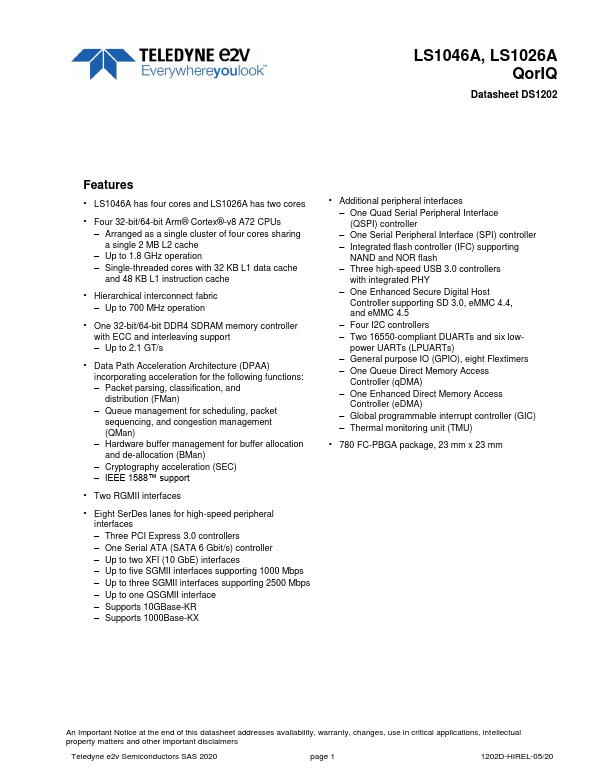

LS1046A, LS1026A Qor IQ Datasheet DS1202 Features - LS1046A has four cores and LS1026A has two cores - Four 32-bit/64-bit Arm® Cortex®-v8 A72 CPUs - Arranged as a single cluster of four cores sharing a single 2 MB L2 cache - Up to 1.8 GHz operation - Single-threaded cores with 32 KB L1 data cache and 48 KB L1 instruction cache - Hierarchical interconnect fabric - Up to 700 MHz operation - One 32-bit/64-bit DDR4 SDRAM memory controller with ECC and interleaving support - Up to 2.1 GT/s - Data Path Acceleration Architecture (DPAA) incorporating acceleration for the following functions: - Packet parsing, classification, and distribution (FMan) - Queue management for scheduling, packet sequencing, and congestion management (QMan) - Hardware buffer management for buffer allocation and de-allocation (BMan) - Cryptography acceleration (SEC) - IEEE 1588™ support - Two RGMII interfaces - Eight Ser Des lanes for high-speed peripheral interfaces - Three PCI Express 3.0 controllers - One Serial ATA (SATA 6 Gbit/s) controller - Up to two XFI (10 Gb E) interfaces - Up to five SGMII interfaces supporting 1000 Mbps - Up to three SGMII interfaces supporting 2500 Mbps - Up to one QSGMII interface - Supports 10GBase-KR - Supports 1000Base-KX - Additional peripheral interfaces - One Quad Serial Peripheral Interface (QSPI)...
