PE9304 - Low Power Divide-by-2 Prescaler

Description

The PE9304 is a high-performance UltraCMOS® prescaler with a fixed divide ratio of 2.

7000 MHz.

The PE9304 operates on a nominal 3V supply and draws only 13.5 mA.

Features

  •  Fixed divide ratio of 2.
  •  Low-power operation: 13.5 mA typical @ 3V.
  •  Small package: 8-lead CFP.
  •  Guaranteed 100 kRad(Si) total dose performance.
  •  Superior single event upset immunity Figure 1. Functional Diagram D Q FININ CLK INB.

📥 Download Datasheet

Datasheet Details

Part number PE9304
Manufacturer Teledyne
File Size 1.89 MB
Description Low Power Divide-by-2 Prescaler
Datasheet download datasheet PE9304 Datasheet

📁 Similar Datasheet

  • PE9304 - Low Power Divide-by-2 Prescaler (Peregrine Semiconductor)
  • PE9301 - 3500 MHz Low Power UltraCMOS Divide-by-2 Prescaler Rad-hard for Space Applications (Peregrine Semiconductor)
  • PE9303 - 3.5 GHz Low Power CMOS Divide-by-8 Prescaler For RAD-Hard Applications (Peregrine Semiconductor)
  • PE9308 - 10.0 GHz Low Power UltraCMOS (Peregrine Semiconductor)
  • PE9309 - 3.0 - 13.5 GHz Low Power UltraCMOS Divide-by-4 Prescaler (Peregrine Semiconductor)
  • PE9311 - high-performance static UltraCMOS prescaler (Peregrine Semiconductor)
  • PE9312 - Divide-by-4 Prescaler Radiation Tolerant (Peregrine Semiconductor)
  • PE9313 - 1500 MHz Low Power UltraCMOS Divide-by-8 Prescaler RAD hard (Peregrine Semiconductor)
  • PE9354 - SPDT High Power UltraCMOS RF Switch (Peregrine Semiconductor)
  • PE90F120 - THYRISTOR MODULE (ETC)
Other Datasheets by Teledyne
  • PE9313 - high-performance static UltraCMOS prescaler
  • PE9354 - SPDT High Power RF Switch
  • PE95421 - SPDT RF Switch
  • PE9601 - Integer-N PLL Radiation Tolerant
  • PE9702 - Integer-N PLL Radiation Tolerant
  • PE97240 - Integer-N Frequency Synthesizer
  • PE97640 - Delta-Sigma Modulated Fractional-N Frequency Synthesizer
  • PE99155 - Hi-Rel 10A DC-DC Converter

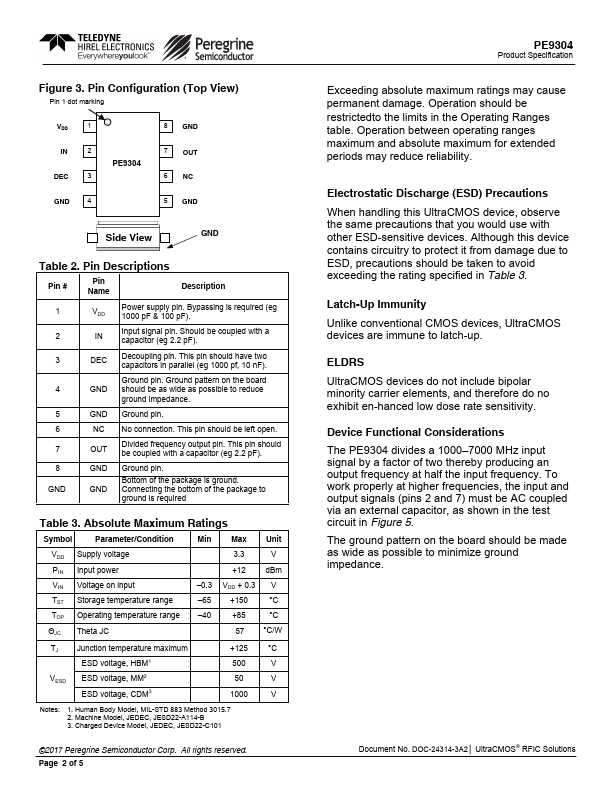

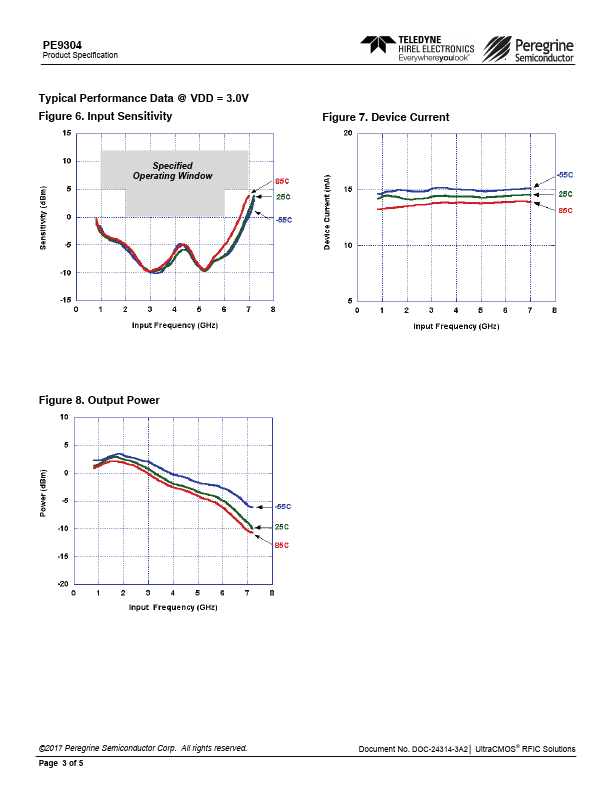

Full PDF Text Transcription

Click to expand full text
Product Description The PE9304 is a high-performance UltraCMOS® prescaler with a fixed divide ratio of 2. Its operating frequency range is 1000–7000 MHz. The PE9304 operates on a nominal 3V supply and draws only 13.5 mA. It is packaged in a small 8lead CFP and is ideal for frequency scaling and clock generation solutions. The PE9304 is manufactured on Peregrine’s UltraCMOS process, a patented variation of silicon-on-insulator (SOI) technology on a sapphire substrate, offering the performance of GaAs with the economy and integration of conventional CMOS. Product Specification PE9304 1–7 GHz Low Power UltraCMOS® Divide-by-2 Prescaler Radiation Tolerant for Space Applications Features  Fixed divide ratio of 2  Low-power operation: 13.
