TDLM202402 Datasheet Quasi-active PIN Diode Limiter Module

Manufacturer: Teledyne

📥 Download Datasheet

Datasheet Details

Part number TDLM202402
Manufacturer Teledyne
File Size 700.91 KB
Description Quasi-active PIN Diode Limiter Module
Download TDLM202402 Download (PDF)

General Description

: The TDLM202402 SMT Silicon PIN Diode Limiter Modules offers “Always On” High Power CW and Peak protection in the S-band region.

This family of Limiter Modules is based on proven hybrid assembly technology utilized extensively in high-reliability, mission-critical applications.

The TDLM202402 offers excellent thermal characteristics in a compact, low profile 8 mm x 5 mm x 2.5 mm package.

Overview

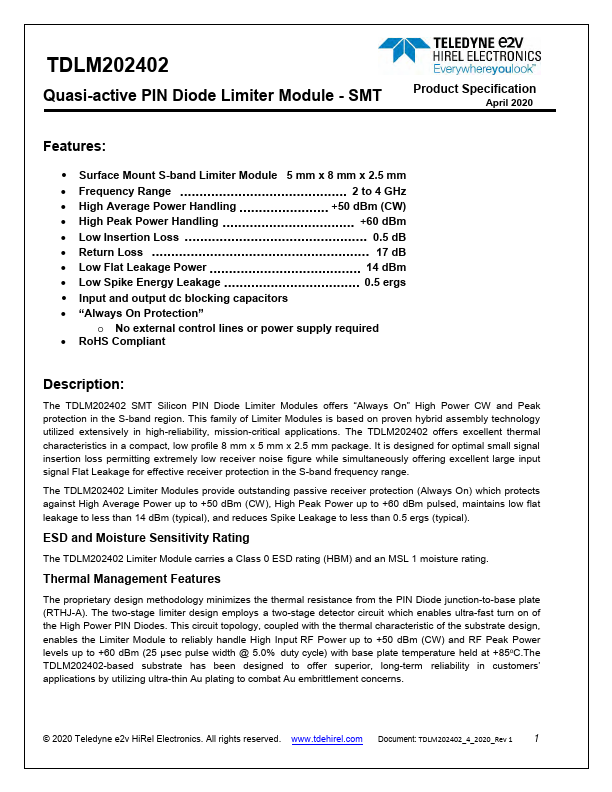

TDLM202402 Quasi-active PIN Diode Limiter Module - SMT Product Specification April.

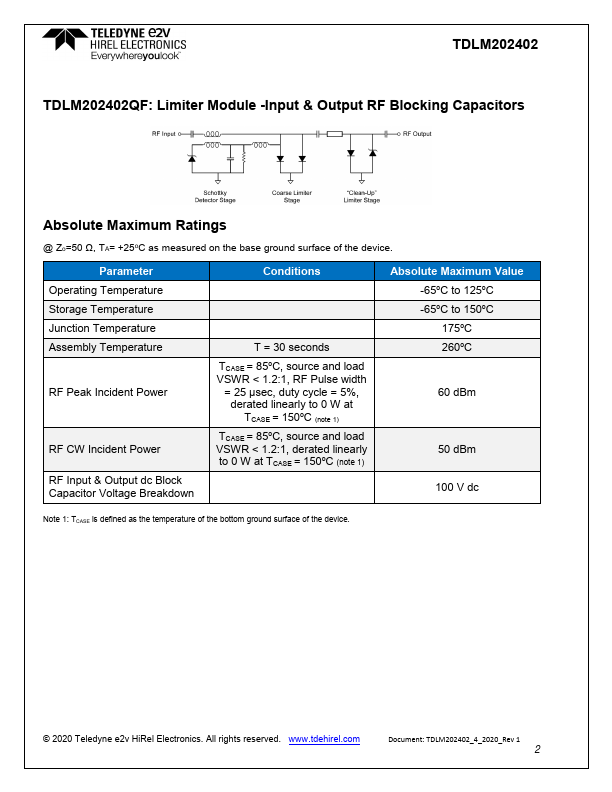

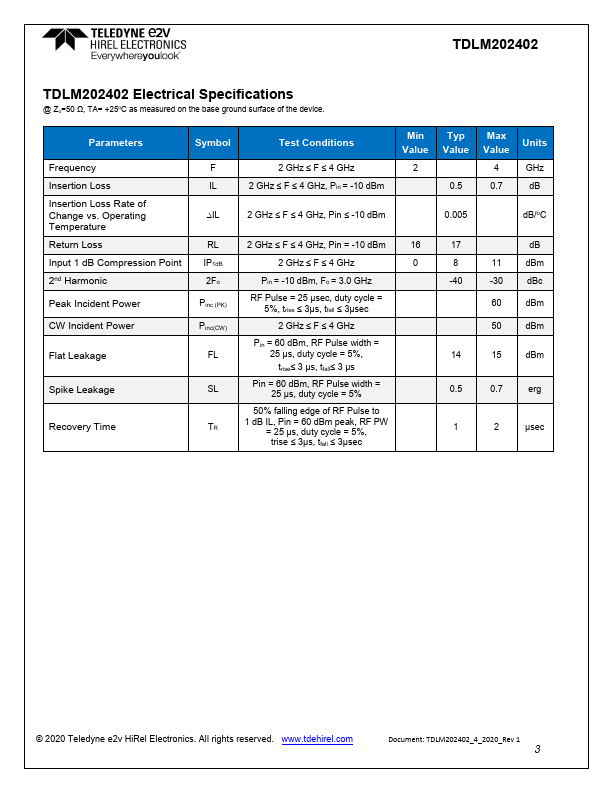

Key Features

  • Surface Mount S-band Limiter Module 5 mm x 8 mm x 2.5 mm.
  • Frequency Range 2 to 4 GHz.
  • High Average Power Handling +50 dBm (CW).
  • High Peak Power Handling +60 dBm.
  • Low Insertion Loss 0.5 dB.
  • Return Loss 17 dB.
  • Low Flat Leakage Power 14 dBm.
  • Low Spike Energy Leakage 0.5 ergs.
  • Input and output dc blocking capacitors.
  • “Always On Protection” o No external control lines or power supply required.
