TDRM24C512C-L - 512K-bit Non-volatile Serial Memory

Product Overview

Teledyne

Datasheet Details

Part number	TDRM24C512C-L
Manufacturer	Teledyne
File Size	1.94 MB
Description	512K-bit Non-volatile Serial Memory
Datasheet	TDRM24C512C-L Datasheet

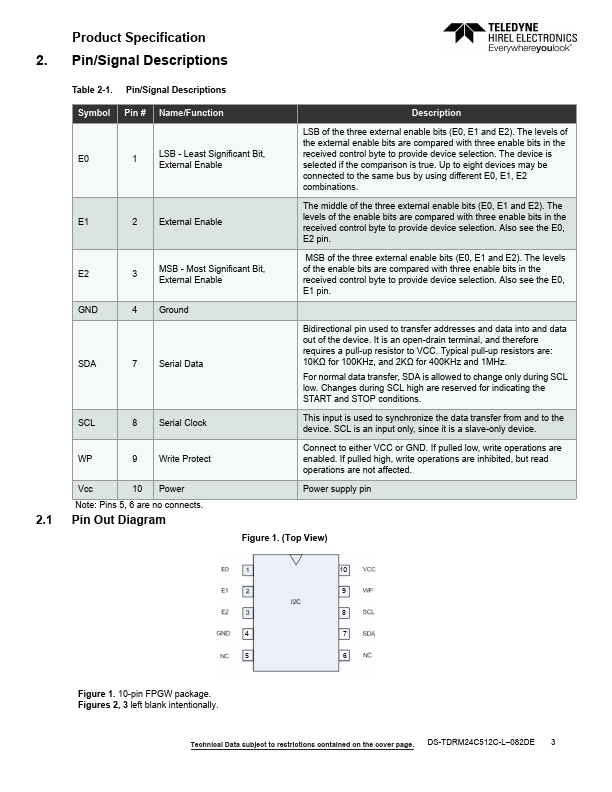

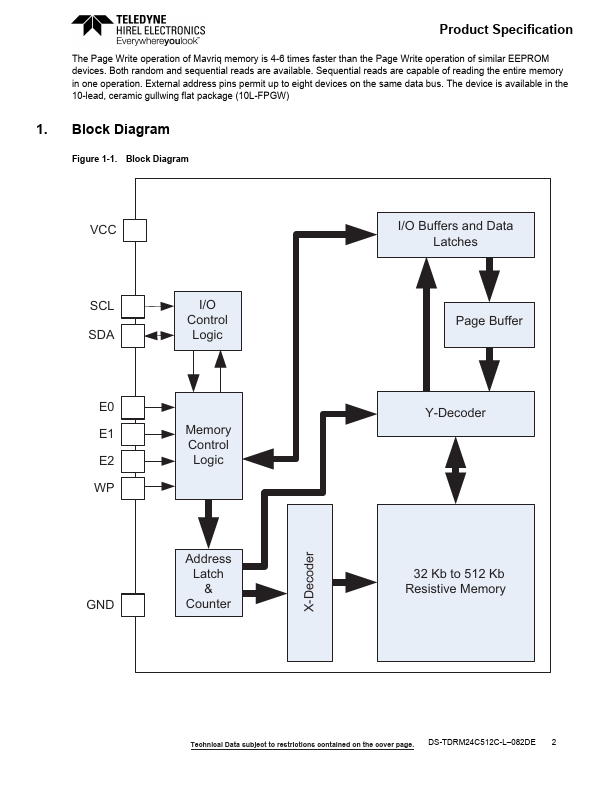

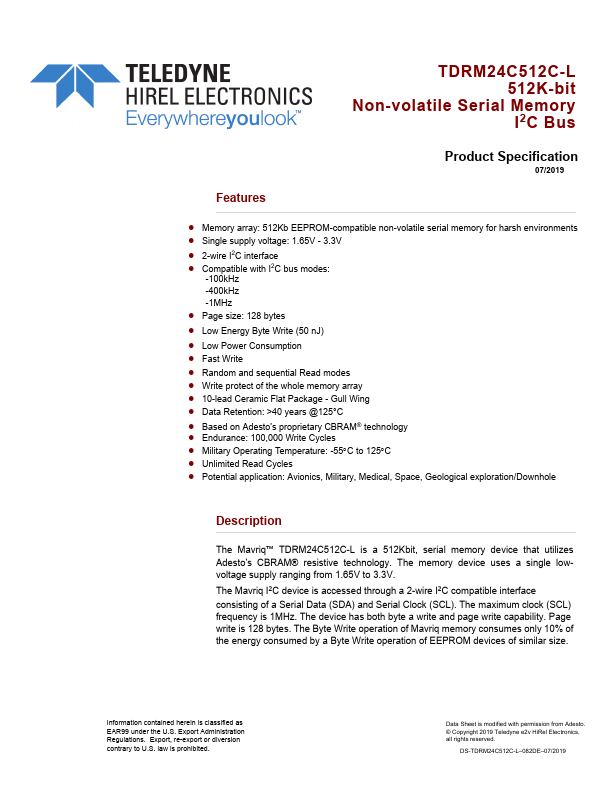

Additional preview pages of the TDRM24C512C-L datasheet.

Product details

Description

The Mavriq™ TDRM24C512C-L is a 512Kbit, serial memory device that utilizes Adesto's CBRAM® resistive technology.The memory device uses a single lowvoltage supply ranging from 1.65V to 3.3V.The Mavriq I2C device is accessed through a 2-wire I2C compatible interface consisting of a Serial Data (SDA) and Serial Clock (SCL).The maximum clock (SCL) frequency is 1MHz.The device has both byte a write and page write capability.Page write is 128 bytes.The Byte Write operation of Mavriq memory consu

Features

Memory array: 512Kb EEPROM-compatible non-volatile serial memory for harsh environments.
Single supply voltage: 1.65V - 3.3V.
2-wire I2C interface.
Compatible with I2C bus modes: -100kHz -400kHz -1MHz.
Page size: 128 bytes.
Low Energy Byte Write (50 nJ).
Low Power Consumption.
Fast Write.
Random and sequential Read modes.
Write protect of the whole memory array.
10-lead Ceramic Flat Package - Gull Wing.
Data Retention: >40 years @125.
