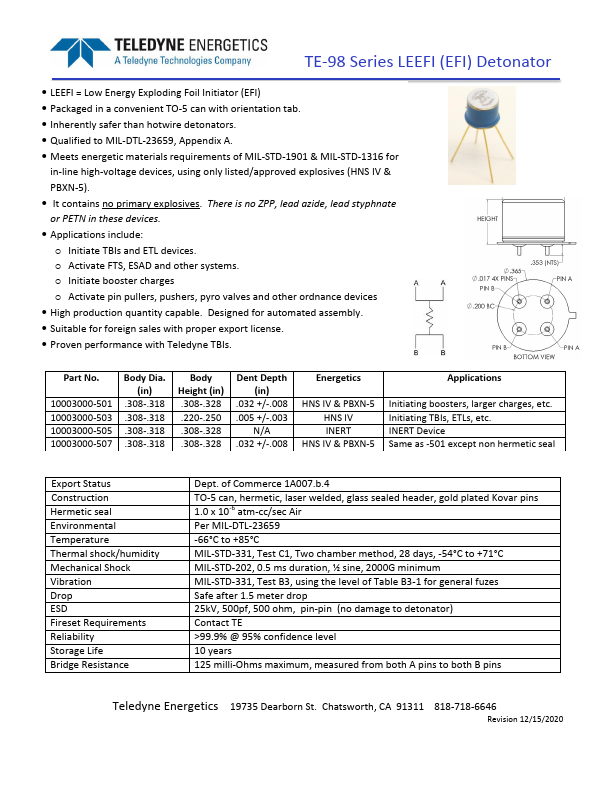

TE-98
TE-98 Series LEEFI (EFI) Detonator
- LEEFI = Low Energy Exploding Foil Initiator (EFI)
- Packaged in a convenient TO-5 can with orientation tab.
- Inherently safer than hotwire detonators.
- Qualified to MIL-DTL-23659, Appendix A.
- Meets energetic materials requirements of MIL-STD-1901 & MIL-STD-1316 for in-line high-voltage devices, using only listed/approved explosives (HNS IV & PBXN-5).
- It contains no primary explosives. There is no ZPP, lead azide, lead styphnate or PETN in these devices.
- Applications include: o Initiate TBIs and ETL devices. o Activate FTS, ESAD and other systems. o Initiate booster charges o Activate pin pullers, pushers, pyro valves and other ordnance devices
- High production quantity capable. Designed for automated assembly.
- Suitable for foreign sales with proper export license.
- Proven performance with Teledyne TBIs.
Part No.
10003000-501 10003000-503 10003000-505 10003000-507
Body Dia. (in)
.308-.318 .308-.318 .308-.318 .308-.318
Body Height (in)...
