Datasheet Details
| Part number | uDOS007-C |
|---|---|
| Manufacturer | Teledyne |
| File Size | 2.85 MB |
| Description | Micro Dosimeter |
| Download | uDOS007-C Download (PDF) |
|
|
Download the uDOS007-C datasheet PDF. This datasheet also includes the uDOS007 variant, as both parts are published together in a single manufacturer document.
| Part number | uDOS007-C |
|---|---|
| Manufacturer | Teledyne |
| File Size | 2.85 MB |
| Description | Micro Dosimeter |
| Download | uDOS007-C Download (PDF) |
|
|
|

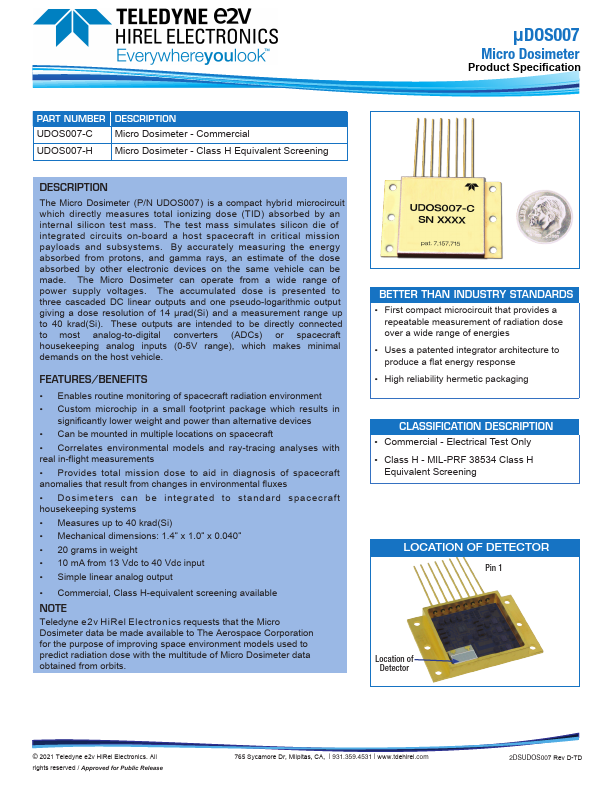

UDOS007-C Micro Dosimeter - Commercial UDOS007-H Micro Dosimeter - Class H Equivalent Screening DESCRIPTION The Micro Dosimeter (P/N UDOS007) is a compact hybrid microcircuit which directly measures total ionizing dose (TID) absorbed by an internal silicon test mass.
The test mass simulates silicon die of integrated circuits on-board a host spacecraft in critical mission payloads and subsystems.
By accurately measuring the energy absorbed from protons, and gamma rays, an estimate of the dose absorbed by other electronic devices on the same vehicle can be made.
μDOS007 Micro Dosimeter Product Specification PART NUMBER.
| Part Number | Description |
|---|---|
| uDOS007-H | Micro Dosimeter |
| uDOS007 | Micro Dosimeter |
| uDOS001 | Micro Dosimeter |
| uDOS001-C | Micro Dosimeter |
| uDOS001-H | Micro Dosimeter |
