XC6116 - Voltage Detector

Download the XC6116 datasheet PDF. This datasheet also covers the XC6101 variant, as both devices belong to the same voltage detector family and are provided as variant models within a single manufacturer datasheet.

General Description

manual reset input and watchdog functions incorporating CMOS process technology.

voltage source, delay circuit, comparator, and output driver.

Key Features

  • Detect Voltage Range Hysteresis Width : 1.6V ~ 5.0V, +2% (0.1V increments) : VDF x 5%, TYP. (XC6101~XC6105) VDF x 0.1%, TYP. (XC6111~XC6117) Operating Voltage Range : 1.0V ~ 6.0V Detect Voltage Temperature: +100ppm/OC (TYP. ) Coefficient Output Configuration Reset Output Options Watchdog Function : N-channel open drain, CMOS : VDFL (Low when detected) VDFH (High when detected) : Watchdog input WD; If it remains ether high or low for the duration of the watchdog timeout period, a reset is asse.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC6101_TorexSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
XC6119 Voltage Detector Torex
XC610 high performance and highly integrated SoC XinChip
XC6126 Single Voltage Detector Torex
XC6127 Ultra Small Voltage Detector Torex
XC6129 Voltage Detector Torex

Other Datasheets by Torex Semiconductor

Part Number Description
XC6111 Voltage Detector
XC6112 Voltage Detector
XC6113 Voltage Detector
XC6114 Voltage Detector
XC6115 Voltage Detector

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

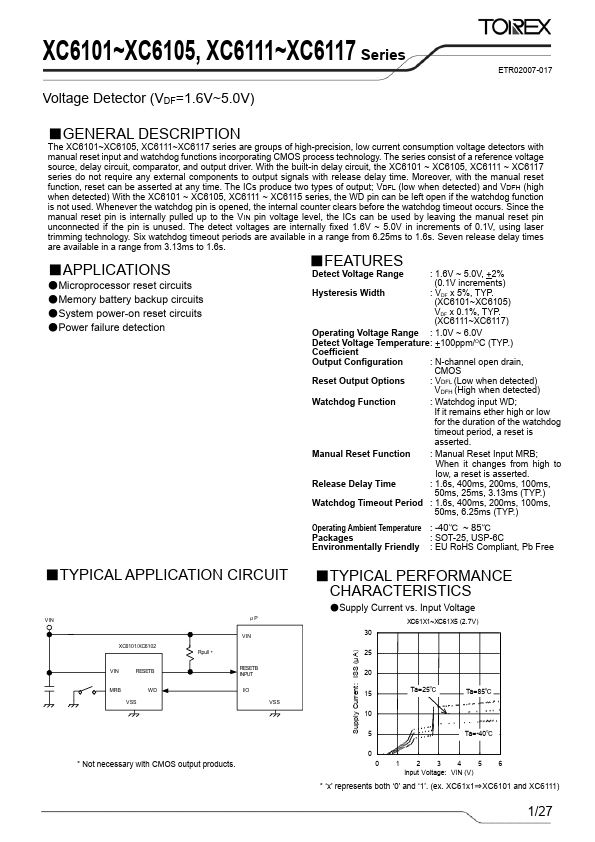

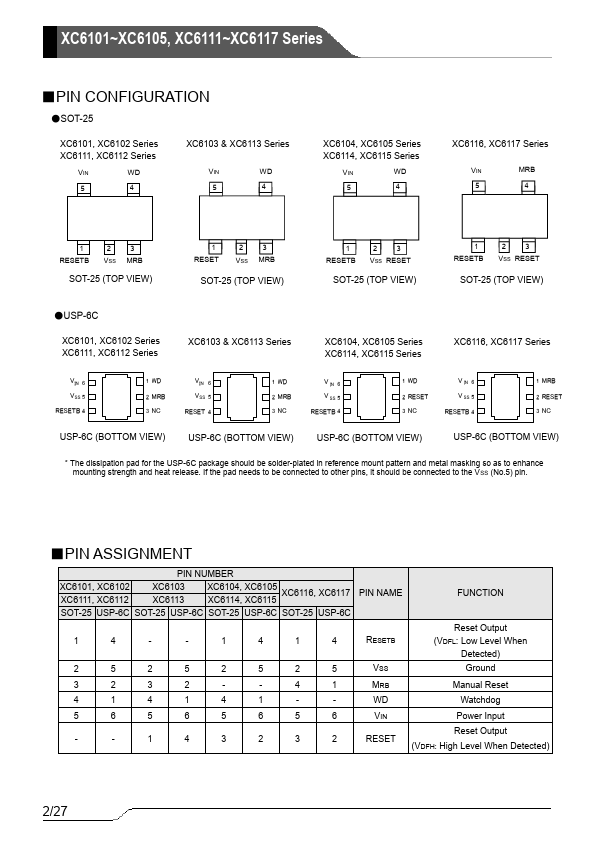

XC6101~XC6105, XC6111~XC6117 Series Voltage Detector (VDF=1.6V~5.0V) ETR0207_016 ■GENERAL DESCRIPTION The XC6101~XC6105, XC6111~XC6117 series are groups of high-precision, low current consumption voltage detectors with manual reset input and watchdog functions incorporating CMOS process technology. The series consist of a reference voltage source, delay circuit, comparator, and output driver. With the built-in delay circuit, the XC6101 ~ XC6105, XC6111 ~ XC6117 series do not require any external components to output signals with release delay time. Moreover, with the manual reset function, reset can be asserted at any time. The ICs produce two types of output; VDFL (low when detected) and VDFH (fuhnigchtiownhiesnndoet utescetedd. ).
