Datasheet Details
| Part number | XC6215 |
|---|---|
| Manufacturer | Torex Semiconductor |
| File Size | 1.35 MB |
| Description | Low Power Consumption Voltage Regulator |
| Datasheet | XC6215_TorexSemiconductor.pdf |
|
|

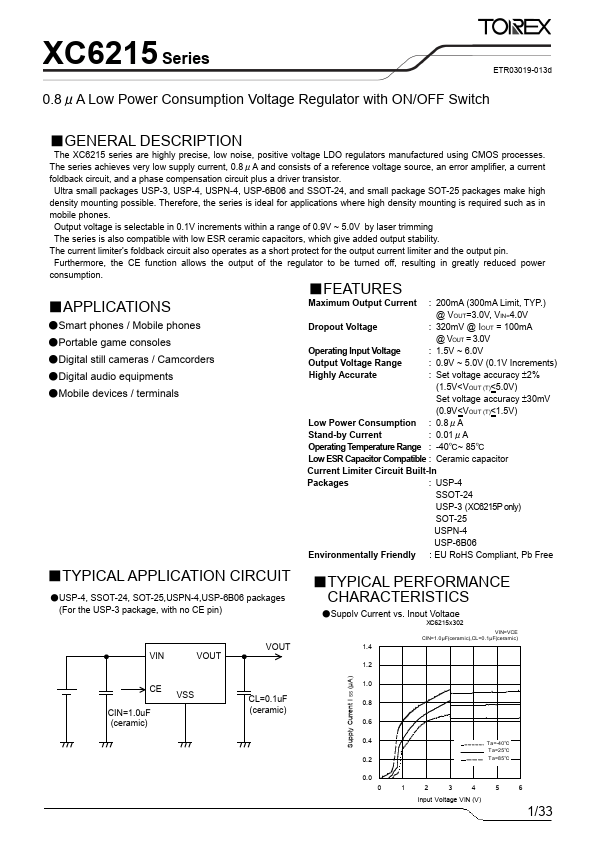

Overview: XC6215 Series ETR03019-013c 0.8μA Low Power Consumption Voltage Regulator with ON/OFF Switch.
| Part number | XC6215 |
|---|---|
| Manufacturer | Torex Semiconductor |
| File Size | 1.35 MB |
| Description | Low Power Consumption Voltage Regulator |
| Datasheet | XC6215_TorexSemiconductor.pdf |
|
|
|
The XC6215 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes.
The series achieves very low supply current, 0.8μA (TYP.) and consists of a reference voltage source, an error amplifier, a current foldback circuit, and a phase pensation circuit plus a driver transistor.
Ultra small packages USP-3, USP-4, USPN-4, USP-6B06 and SSOT-24, and small package SOT-25 packages make high density mounting possible.
