XC6221 Datasheet PDF (Low ESR Caps Compatible High Speed LDO Voltage Regulators)

XC6221 - Low ESR Caps Compatible High Speed LDO Voltage Regulators

Description

The XC6221 series is a high accuracy, low noise, high speed, low dropout CMOS regulator with high ripple rejection.

The series includes a reference voltage source, an error amplifier, a current limiter, and a phase compensation circuit.

Features

Maximum Output Current : 200mA.
Portable game consoles Dropout Voltage Operating Voltage Range : 80mV@ IOUT=100mA, VOUT=3.0V : 1.6V ~ 6.0V.
Digital still cameras / Camcorders Output Voltage Range : 0.80V~5.00V (0.05V increments, expect USPN-4) 1.20V~5.00V (0.05V increments, USPN-4).
Digital audio equipments.
Mobile devices / terminals Accuracy Low Power Consumption Stand-by Current : +2% (VOUT >1.50V) (Standard) +30mV (VOUT≦1.45V) (Standard) +1% (VO.

Datasheet Details

Part number	XC6221
Manufacturer	Torex Semiconductor
File Size	1.22 MB
Description	Low ESR Caps Compatible High Speed LDO Voltage Regulators
Datasheet	XC6221 Datasheet

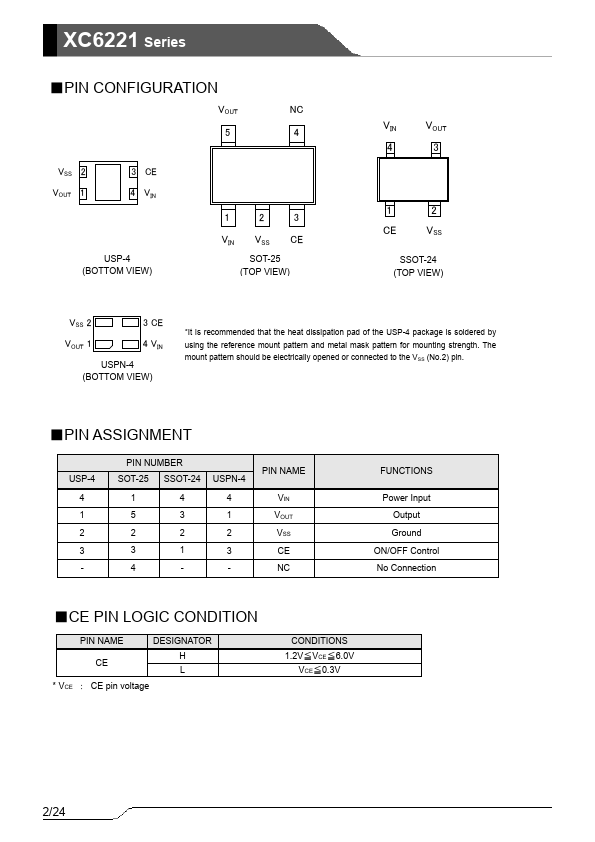

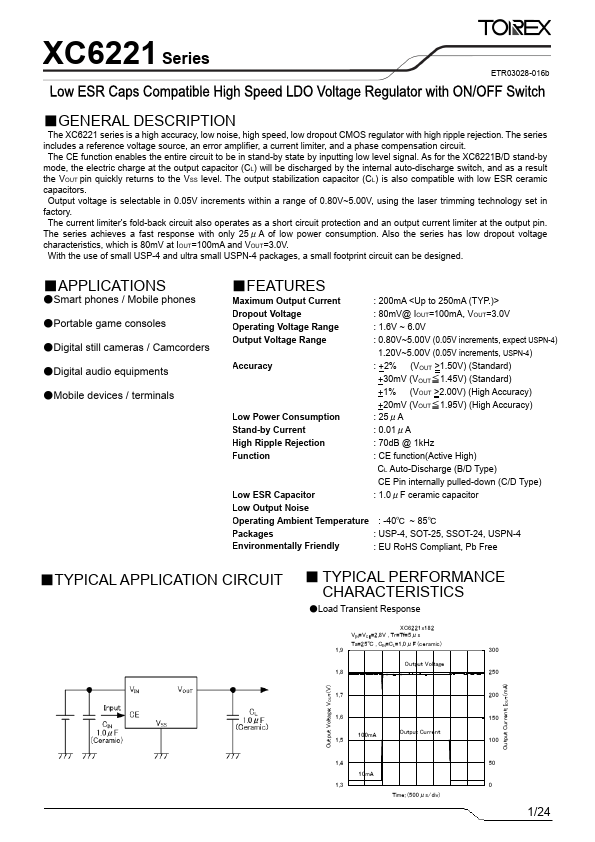

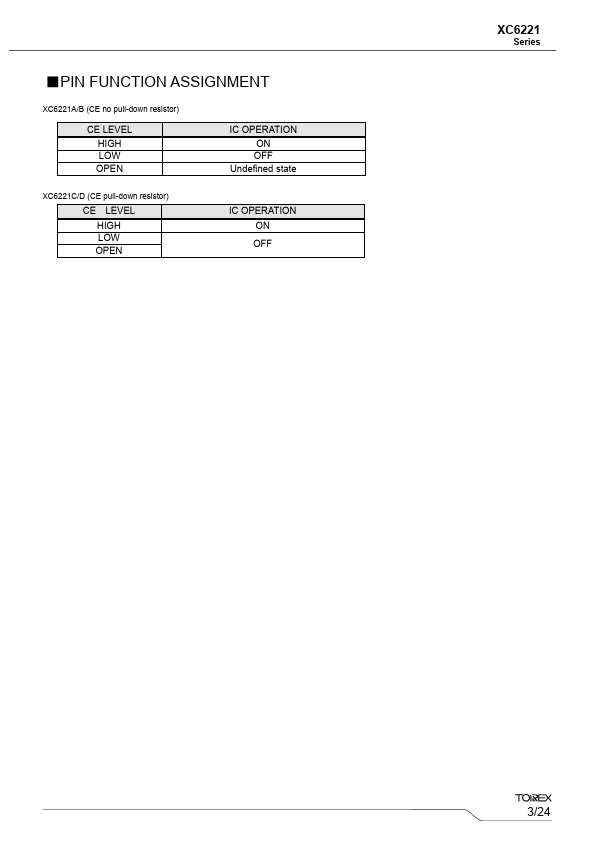

Additional preview pages of the XC6221 datasheet.

📁 Similar Datasheet

XC6206 - 100mA Low Dropout CMOS Voltage Regulators (JinYu)

XC6206 - Linear voltage regulator (UMW)

XC6211 - 300mA High Speed LDO Regulators (Torex)

XC6218 - Low Power Supply LDO Regulators (TOREX)

XC6238 - 300mA High Speed LDO Regulator (Torex)

XC6240 - Rechargeable Batteries Charging (Torex)

XC6241 - High Speed Voltage Regulators (Torex)

XC6242 - Charging IC (Torex)

XC62AP5002PR - Positive Voltage Regulator (ETC)

XC62K - Negative Voltage Regulators (Torex)

Full PDF Text Transcription

Click to expand full text

XC6221 Series ETR03028-016a ■GENERAL DESCRIPTION The XC6221 series is a high accuracy, low noise, high speed, low dropout CMOS regulator with high ripple rejection. The series includes a reference voltage source, an error amplifier, a current limiter, and a phase compensation circuit. The CE function enables the entire circuit to be in stand-by state by inputting low level signal. As for the XC6221B/D stand-by mode, the electric charge at the output capacitor (CL) will be discharged by the internal auto-discharge switch, and as a result the VOUT pin quickly returns to the VSS level. The output stabilization capacitor (CL) is also compatible with low ESR ceramic capacitors. Output voltage is selectable in 0.05V increments within a range of 0.80V~5.
