XC9221 - Step-Down DC/DC Controller

Download the XC9221 datasheet PDF. This datasheet also covers the XC9220 variant, as both devices belong to the same step-down dc/dc controller family and are provided as variant models within a single manufacturer datasheet.

General Description

The XC9220/XC9221 series is a group of multi-purpose step-down DC/DC controller ICs.

The ICs enable a high efficiency, stable power supply with an output current up to 3A to be configured using only a transistor, a coil, a diode, and two capacitors connected externally.

Key Features

  • Operating Voltage Range : 2.8V ~ 16.0V Output Voltage Externally Set Range : 1.2V or more (VFB=0.9V+1.5%) Output Current : Less than 3.0A Oscillation Frequency : 300kHz, 500kHz, and 1.0MHz Control Methods : PWM control (XC9220) PWM/PFM automatic switching (XC9221) Soft-Start Function : 4ms, internally set (XC9220/XC9221A, 500kHz) Protection Circuits Externally set (XC9220/XC9221B) : Integral protection (1.0 ms) (XC9220/XC9221 Aand B series) Short-circuit protection Low ESR Capac.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC9220_TorexSemiconductor.pdf) that lists specifications for multiple related part numbers.

More Datasheets from Torex Semiconductor

Part Number Description
XC9220 Step-Down DC/DC Controller
XC9223 Step-Down DC/DC Converter
XC9224 Step-Down DC/DC Converter
XC9225 Synchronous Step-Down DC/DC Converters
XC9226 Synchronous Step-Down DC/DC Converters
XC9227 Synchronous Step-Down DC/DC Converters
XC9201 PWM Controlled Step-Down DC/DC Converters
XC9206 PWM/PFM Switchable Step-Down DC/DC Converters
XC9207 PWM/PFM Switchable Step-Down DC/DC Converters
XC9208 PWM/PFM Switchable Step-Down DC/DC Converters

Full PDF Text Transcription for XC9221 (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

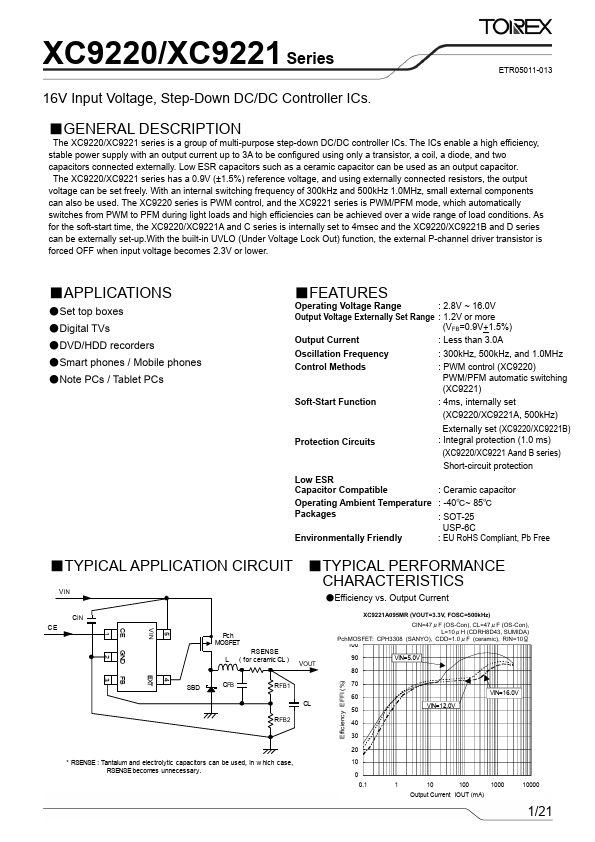

XC9220/XC9221 Series 16V Input Voltage, Step-Down DC/DC Controller ICs. ETR0511-012 ˙GENERAL DESCRIPTION The XC9220/XC9221 series is a group of multi-purpose step-down DC/DC controller ICs. The ICs enable a high efficiency, stable power supply with an output current up to 3A to be configured using only a transistor, a coil, a diode, and two capacitors connected externally. Low ESR capacitors such as a ceramic capacitor can be used as an output capacitor. The XC9220/XC9221 series has a 0.9V (±1.5%) reference voltage, and using externally connected resistors, the output voltage can be set freely. With an internal switching frequency of 300kHz and 500kHz 1.0MHz, small external components can also be used.
