XC9503 - 2ch Step-down DC/DC Controller

General Description

XC9503 series are PWM controlled, PWM/PFM automatic switching controlled, multi-functional, 2 channel step-down DC/DC controller ICs.

Since the series has a built-in 0.9V reference voltage (accuracy 2%), 0.9V to 6.0V can be set using external components.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC9500XL High-Performance CPLD Xilinx
XC95108 XC95108 In-System Programmable CPLD Xilinx
XC95144 XC95144 In-System Programmable CPLD Xilinx
XC95144XL High Performance CPLD Xilinx
XC95144XV High-Performance CPLD Xilinx

Other Datasheets by Torex Semiconductor

Part Number Description
XC9501 2ch. Step-up DC/DC Controller
XC9502 2ch. Step-up / down DC/DC Controller ICs
XC9504 Step-up / Inverting DC/DC Controller
XC9505 Step-up / Inverting DC/DC Controller
XC9508 Synchronous Step-Down DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

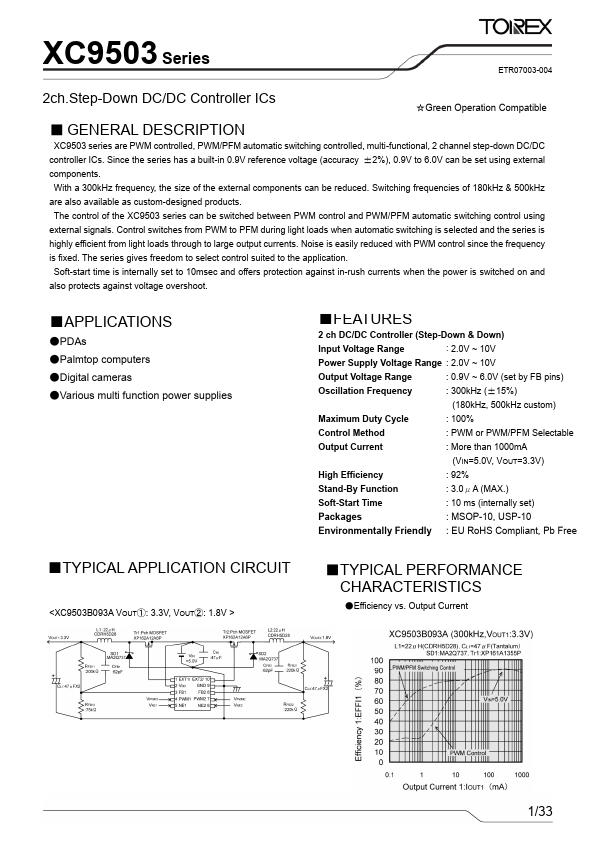

XC9503 Series 2ch.Step-Down DC/DC Controller ICs ETR0703_003 GreenOperation Compatible GENERAL DESCRIPTION XC9503 series are PWM controlled, PWM/PFM automatic switching controlled, multi-functional, 2 channel step-down DC/DC controller ICs. Since the series has a built-in 0.9V reference voltage (accuracy 2%), 0.9V to 6.0V can be set using external components. With a 300kHz frequency, the size of the external components can be reduced. Switching frequencies of 180kHz & 500kHz are also available as custom-designed products. The control of the XC9503 series can be switched between PWM control and PWM/PFM automatic switching control using external signals.
