XCL205 datasheet by Torex Semiconductor.
| Part number | XCL205 |
|---|---|
| Datasheet | XCL205_TorexSemiconductor.pdf |
| File Size | 2.26 MB |
| Manufacturer | Torex Semiconductor |
| Description | Inductor Built-in Step-Down micro DC/DC Converters |
|
|

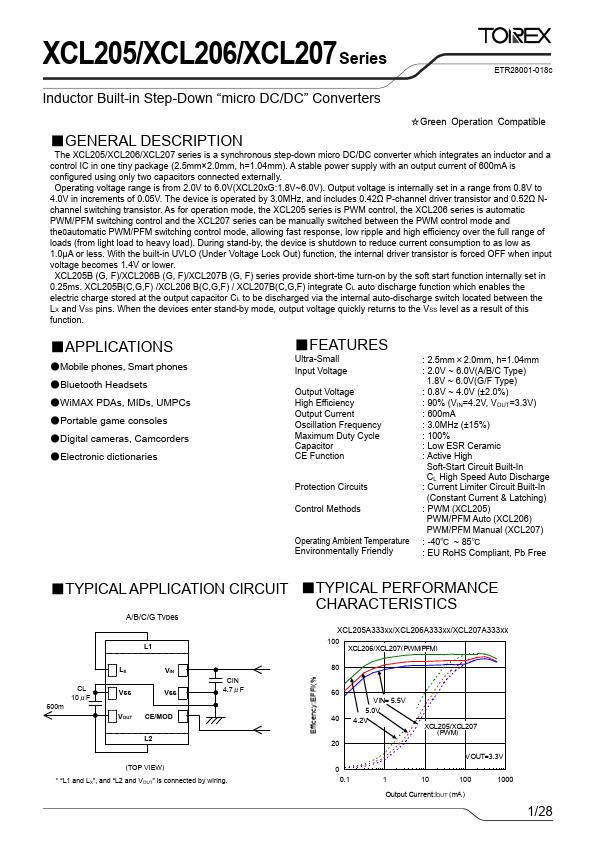

The XCL205/XCL206/XCL207 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.5mm×2.0mm, h=1.0mm). A stable power supply with an output current of 600mA is configured using only two capacitors connected externally. Operating voltage range is from 2.0V to 6.0V(XCL20xG:1.8V~6.0V).
