XCM524 - 600mA Synchronous Step-Down DC/DC Converter + 500mA LDO

Description

The XCM524 series is a multi combination module IC which comprises of a 600mA driver transistor built-in synchronous step

down DC/DC converter and a high speed, high current LDO regulator with voltage detector function.

Features

  • Input Voltage Range : 2.7V ~ 6.0V Output Voltage Options : 0.8V ~ 4.0V (±2ˋ) High Efficiency : 92% (TYP. ) Output Current : 600mA (MAX. ) Oscillation Frequency : 1.2MHz, 3.0MHz (+15%) Current Limiter Circuit Built-In : Constant Current & Latching Control Methods : PWM PWM/PFM Auto.
  • Performance depends on external components and wiring on PCB wiring. Maximum Output Current : 500mA (Limiter 600mA TYP. ) Dropout Voltage Operating Voltag.

📥 Download Datasheet

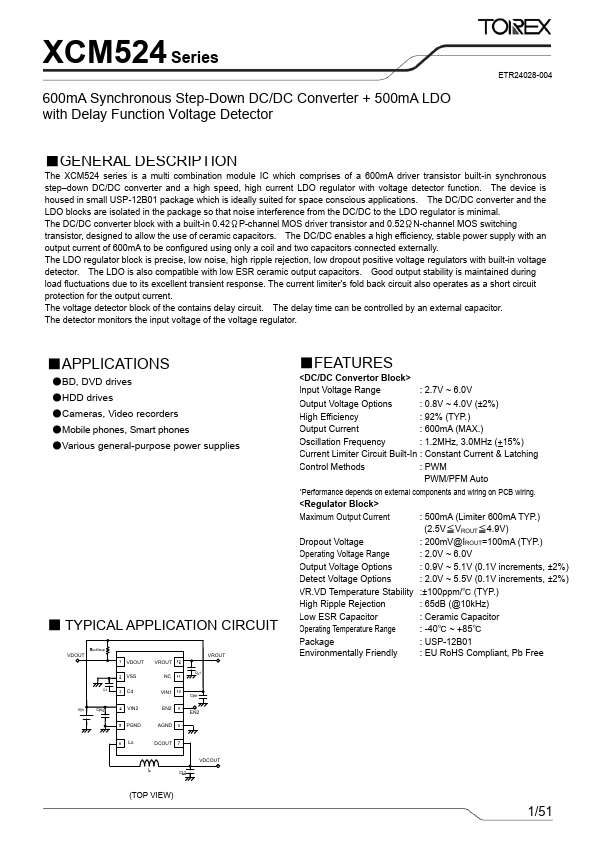

Datasheet preview – XCM524

Datasheet Details

Part number XCM524
Manufacturer Torex Semiconductor
File Size 1.53 MB
Description 600mA Synchronous Step-Down DC/DC Converter + 500mA LDO
Datasheet download datasheet XCM524 Datasheet
Additional preview pages of the XCM524 datasheet.
