TOREX SEMICONDUCTOR XC61CC2702
The XC61C series are highly precise, low power consumption voltage detectors, manufactured using CMOS and laser trimming technologies. Both CMOS and N-ch open drain output configurations are available.| Part No. | XC61CC2702 |
|---|---|
| Datasheet | XC61CC2702 Download |
| Manufacturer |  TOREX SEMICONDUCTOR |
| Description | Low Voltage Detectors |
| Buy | Stock & Price |

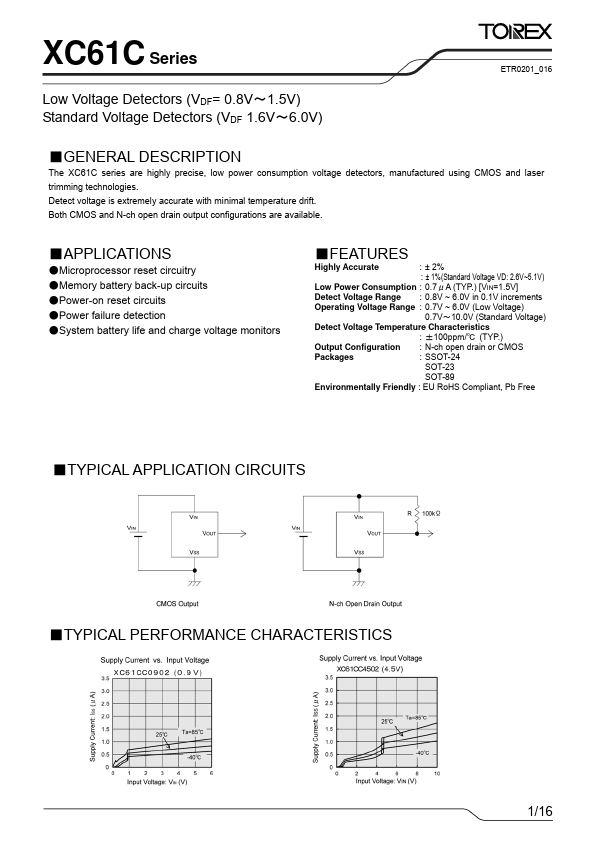

GENERAL DESCRIPTION
Detect voltage is extremely accurate with minimal temperature drift.●
APPLICATIONS
●Microprocessor reset circuitry●Memory battery back-up circuits
●Power-on reset circuits
●Power failure detection
●System battery life and charge voltage monitors
●
FEATURES
Highly Accurate : ± 2% : ± 1%(Standard Voltage VD: 2.6V~5.1V) Low Power Consumption : 0.7μA (TYP.) [VIN=1.5V] Detect Voltage Range : 0.8V ~ 6.0V in 0.1V increments Operating Voltage Range : 0.7V ~ 6.0V (Low Voltage) 0.7V～10.0V (Standard Voltage) Detect Voltage Temperature Characteristics : ±100ppm/℃ (TYP.) Output Configuration : N-ch open drain or CMOS Packages : SSOT-24 SOT-23 SOT-89 Environmentally Friendly : EU RoHS Compliant, Pb Free●TYPICAL APPLICATION CIRCUITS
●TYPICAL PERFORMANCE CHARACTERISTICS 1/16 XC61C Series
●PIN CONFIGURATION
●PIN ASSIGNMENT SSOT-24 2 4 1 3 PIN NUMBER SOT-23 3 2 1 - SOT-89 2 3 1 - PIN NAME VIN VSS VOUT NC FUNCTIONS Supply Voltage Input Ground Output No Connection
●PRODUCT CLASSIFICAT...
