TOREX SEMICONDUCTOR XC6215

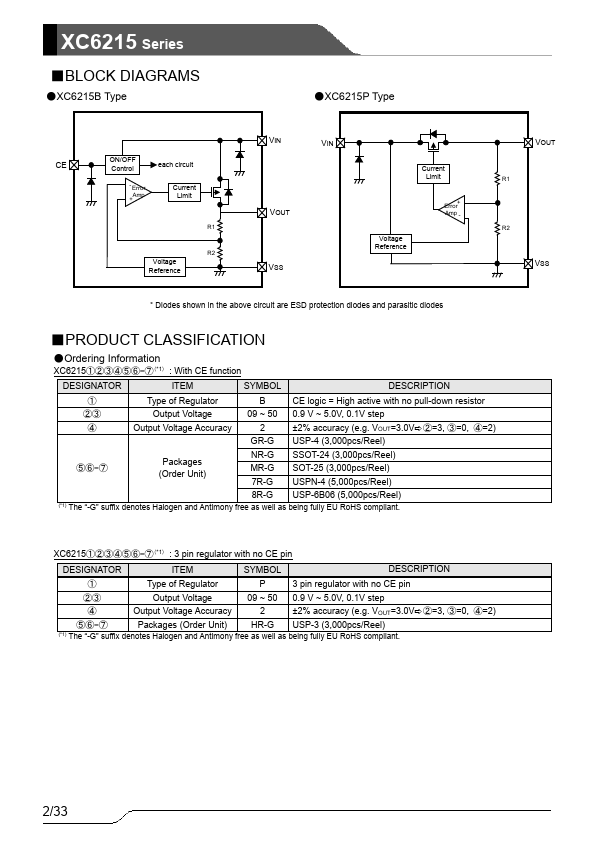

The XC6215 series are highly precise, low noise, positive voltage LDO regulators manufactured using CMOS processes. The series achieves very low supply current, 0.8μA and consists of a reference voltage source, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor.| Part No. | XC6215 |
|---|---|
| Datasheet | XC6215 Download |
| Manufacturer |  TOREX SEMICONDUCTOR |
| Description | Low Power Consumption Voltage Regulator |
| Buy | Stock & Price |
GENERAL DESCRIPTION

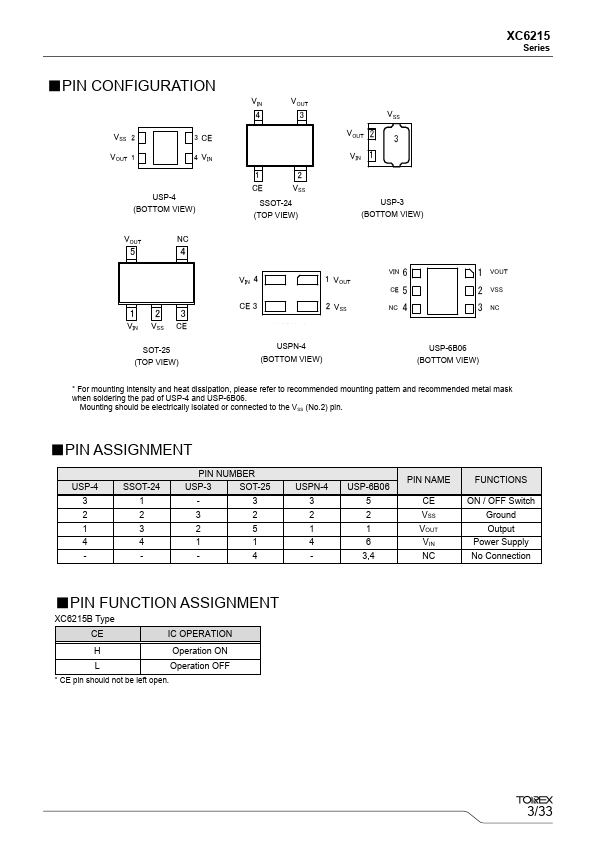

Ultra small packages USP-3, USP-4, USPN-4, USP-6B06 and SSOT-24, and small package SOT-25 packages make high density mounting possible. Therefore, the series is ideal for applications where high density mounting is required such as in mobile phones. Output voltage is selectable in 0.1V increments within a range of 0.9V ~ 5.0V by laser trimming The series is also compatible with low ESR ceramic capacitors, which give added output stability. The current limiter's foldback circuit also operates as a short protect for the output current limiter and the output pin. Furthermore, the CE function allows the output of the regulator to be turned off, resulting in greatly reduced power consumption.●
FEATURES
●APPLICATIONS
●Smart phones / Mobile phones Maximum Output Current Dropout Voltage : 200mA (300mA Limit, TYP.) @ VOUT=3.0V, VIN=4.0V : 320mV @ IOUT = 100mA●Portable game consoles
●Digital still cameras / Camcorders Operating Input Voltage Output Voltage Range @ VOUT = 3.0...
