XC6241 - High Speed Voltage Regulators

General Description

The XC6241 series are CMOS process high-speed voltage regulator ICs with low supply current, high accuracy, and high ripple rejection.

The output voltage is fixed internally and can be set in the range of 1.2V to 5.0V.

Key Features

  • ow Supply Current : 0.6µA (PS) Accuracy : +1.0% (VOUT≧2.00V) ±20mV (VOUT≦1.95V) Operating Voltage Range : 1.6V ~ 6.0V Output Voltage Range : 1.2V ~ 5.0V (0.05V increments) Maximum Output Current : 150mA High Ripple Rejection : 60dB@1kHz (HS) Function : Green Operation, CE function: “H” Active CL Discharge (A TYPE) Protective Function : Current Limit 250mA (TYP. ) Short-Circuit Current 15mA (TYP. ) Output Capacitor : Ceramic capacitor Operating Ambient Temperature : -40℃ ~ 105℃.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XC6201 Positive Voltage Regulators Torex Semiconductor
XC6202 High Voltage positive Voltage Regulators Torex Semiconductor
XC6203 Large Current Positive Voltage Regulators Torex Semiconductor
XC6204 300mA/150mA High Speed LDO Regulators Torex Semiconductor
XC6205 300mA/150mA High Speed LDO Regulators Torex Semiconductor

Other Datasheets by Torex Semiconductor

Part Number Description
XC6240 Rechargeable Batteries Charging
XC6242 Charging IC
XC6211 300mA High Speed LDO Regulators
XC6218 Low Power Supply LDO Regulators
XC6238 300mA High Speed LDO Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

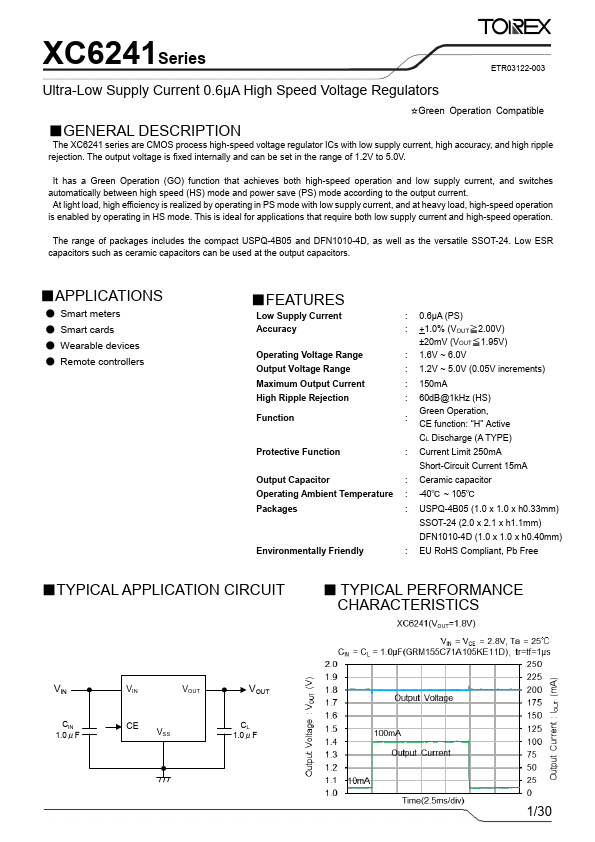

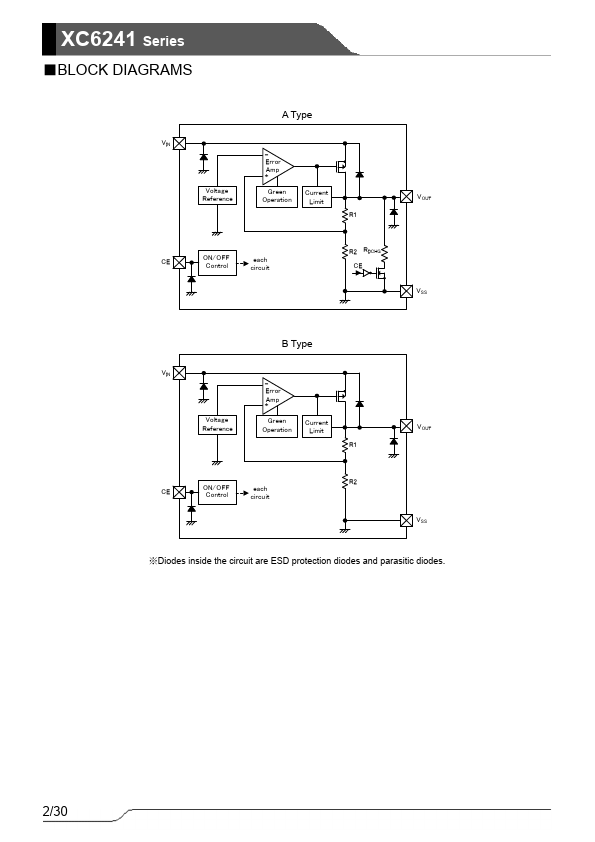

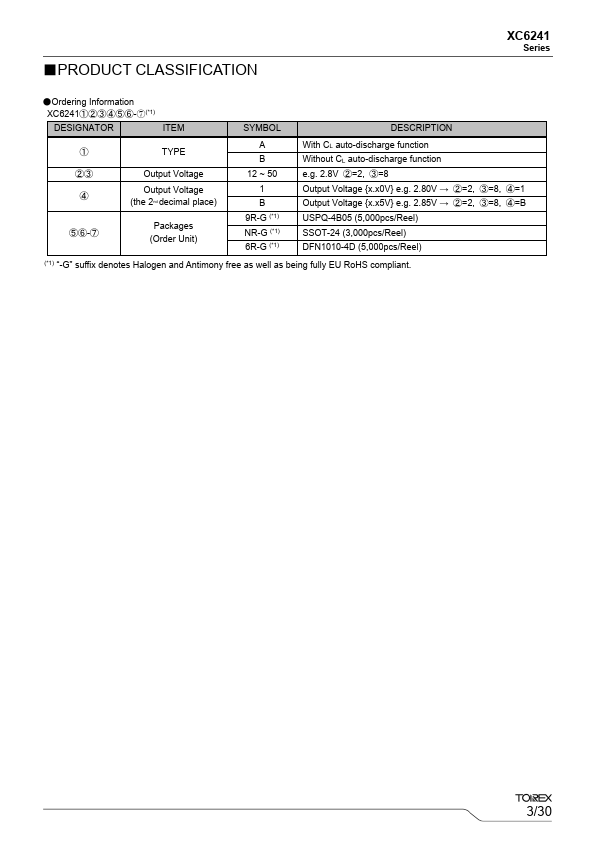

XC6241Series ETR03122-002 Ultra-Low Supply Current 0.6µA High Speed Voltage Regulators ☆Green Operation Compatible ■GENERAL DESCRIPTION The XC6241 series are CMOS process high-speed voltage regulator ICs with low supply current, high accuracy, and high ripple rejection. The output voltage is fixed internally and can be set in the range of 1.2V to 5.0V. It has a Green Operation (GO) function that achieves both high-speed operation and low supply current, and switches automatically between high speed (HS) mode and power save (PS) mode according to the output current. At light load, high efficiency is realized by operating in PS mode with low supply current, and at heavy load, high-speed operation is enabled by operating in HS mode.
