TOREX SEMICONDUCTOR XC6501D

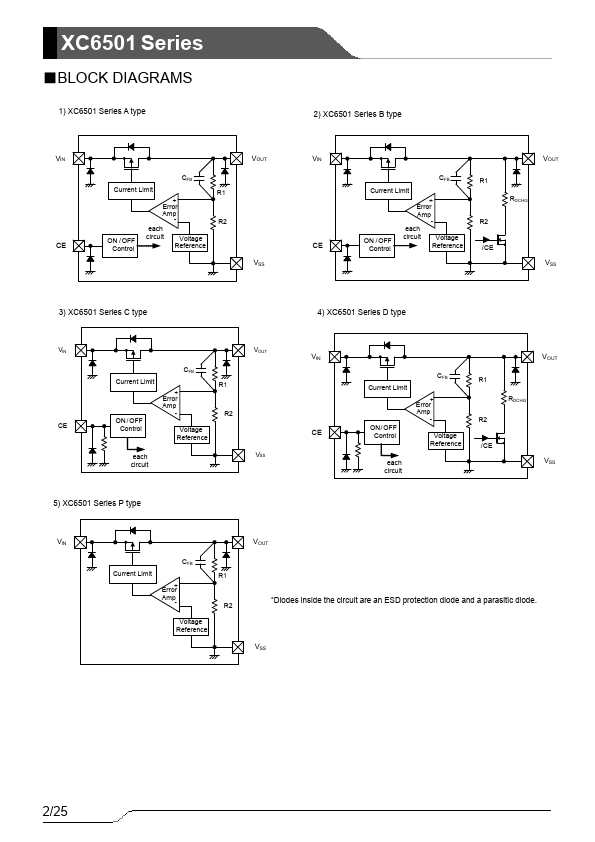

The XC6501 series is a high speed, low noise CMOS LDO regulator that can provide stable output voltages even without a load capacitor CL. This is possible because phase compensation is carried out internally unlike other LDOs where it is done externally. The series consists of a reference voltage source, driver transistor, error amplifier, current limit circuit, and phase compensation circuit.| Part No. | XC6501D |
|---|---|
| Datasheet | XC6501D Download |
| Manufacturer |  TOREX SEMICONDUCTOR |
| Description | High Speed LDO Regulator |
| Buy | Stock & Price |
GENERAL DESCRIPTION
The CE function enables the circuit to be put into stand-by mode by inputting a low level signal to the CE pin thereby reducing current consumption from an already low 13μA (in operation) to less than 0.1μA. In the stand-by mode, if a CL capacitor is used, the electric charge stored at CL can be discharged via the internal auto-discharge switch and as a result, the VOUT pin quickly returns to the VSS level. The current limit fold-back circuit operates as a short circuit protection and a current limiter function for the output pin.●
APPLICATIONS
●Smart phones / Mobile phones●Portable games
●Modules (wireless, camera, etc.)
●Bluetooth
●Digital-TV tuners
●
FEATURES
Maximum Output Current : 200mA Operating Voltage Range Output Voltage Range : 1.4V ~ 6.0V 2.0V ~ 5.0V (±1%) (*1) : 1.2V ~ 1.95V (±0.02V) (*1) Dropout Voltage : 150mV＠IOUT=100mA, VOUT=2.8V Low Power Supply : 13μA ＠VOUT=2.8V Stand-by Current : Less than 0.1μA Ripple Rejection : 50dB＠f=1kHz,VOUT=2.8V Protection...
