XC9245 - Step-Down DC/DC Converter

Download the XC9245 datasheet PDF. This datasheet also covers the XC9244 variant, as both devices belong to the same step-down dc/dc converter family and are provided as variant models within a single manufacturer datasheet.

General Description

ceramic capacitors.

Key Features

  • Driver Transistor Built-In : 0.65Њ P-ch Driver Transistor  0.45Њ N-ch Synchronous Switch Transistor Input Voltage : 2.3V ~ 6.0V Output Voltage Selectable High Efficiency : 0.8V ~ 4.0V (0.05V Increments) : 90% (TYP. )ˎ Output Current : 400mA Oscillation Frequency : 1.2MHz ±15% Maximum Duty Cycle Function   : 100% : Current Limiter Circuit (Constant Current & Latching) CL High Speed Discharge Soft Start Circuit Capacitor : Low ESR Ceramic Capacitor Control Methods : PWM (XC9.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XC9244-Torex.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
XC9246 16V Driver Transistor Built-In Step-Down DC/DC Converters Torex Semiconductor
XC9247 16V Driver Transistor Built-In Step-Down DC/DC Converters Torex Semiconductor
XC9248 Synchronous Step-Down DC/DC Converter Torex Semiconductor
XC9201 PWM Controlled Step-Down DC/DC Converters Torex Semiconductor
XC9206 PWM/PFM Switchable Step-Down DC/DC Converters Torex Semiconductor

Other Datasheets by Torex Semiconductor

Part Number Description
XC9242 2A Synchronous Step-Down DC/DC Converter
XC9243 2A Synchronous Step-Down DC/DC Converter
XC9244 Step-Down DC/DC Converter
XC9260 Step-Down DC/DC Converter
XC9261 Step-Down DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

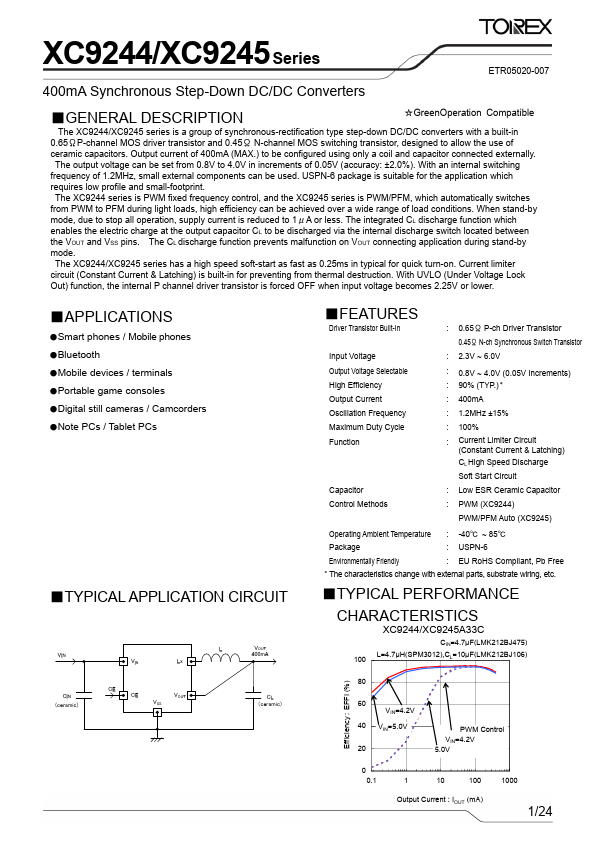

XC9244/XC9245 Series ETR0520-006 400mA Synchronous Step-Down DC/DC Converters ˙GENERAL DESCRIPTION ˑGreenOperation Compatible The XC9244/XC9245 series is a group of synchronous-rectification type step-down DC/DC converters with a built-in 0.65Њ P-channel MOS driver transistor and 0.45Њ N-channel MOS switching transistor, designed to allow the use of ceramic capacitors. Output current of 400mA (MAX.) to be configured using only a coil and capacitor connected externally. The output voltage can be set from 0.8V to 4.0V in increments of 0.05V (accuracy: ±2.0%). With an internal switching frequency of 1.2MHz, small external components can be used. USPN-6 package is suitable for the application which requires low profile and small-footprint.
