XCL102 - Inductor Built-in Step-up micro DC/DC Converter

Product Overview

Torex

Datasheet Details

Part number	XCL102
Manufacturer	Torex
File Size	742.22 KB
Description	Inductor Built-in Step-up micro DC/DC Converter
Datasheet	XCL102 Datasheet

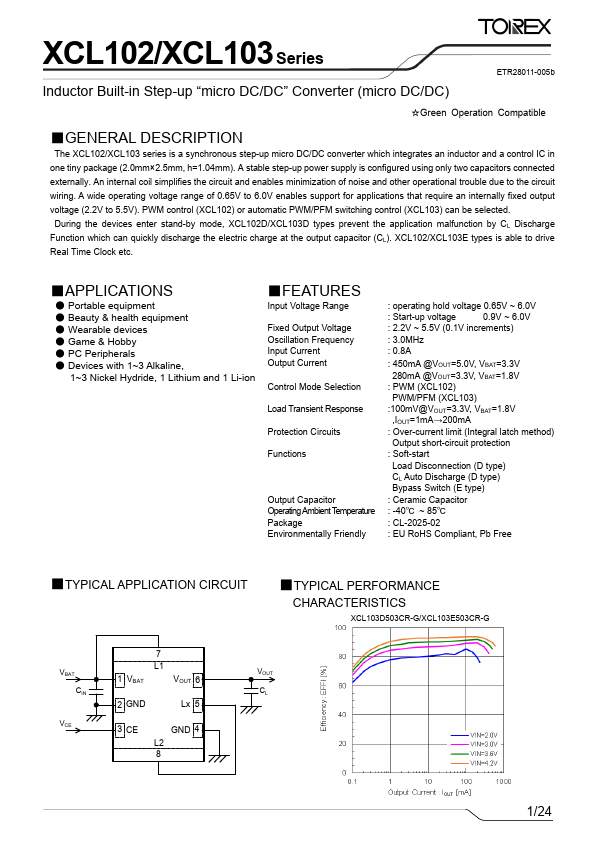

Additional preview pages of the XCL102 datasheet.

XCL102 Product details

Description

The XCL102/XCL103 series is a synchronous step-up micro DC/DC converter which integrates an inductor and a control IC in one tiny package (2.0mm×2.5mm, h=1.0mm).

A stable step-up power supply is configured using only two capacitors connected externally.

Features

Voltage Range Fixed Output Voltage Oscillation Frequency Input Current Output Current Control Mode Selection Load Transient Response Protection Circuits Functions Output Capacitor Operating Ambient Temperature Package Environmentally Friendly : operating hold voltage 0.65V ~ 6.0V : Start-up voltage 0.9V ~ 6.0V : 2.2V ~ 5.5V (0.1V increments) : 3.0MHz : 0.8A : 450mA @VOUT=5.0V, VBAT=3.3V 280mA @VOUT=3.3V, VBAT=1.8V : PWM (XCL102) PWM/PFM (XCL103) :100mV@VOUT=3.3V, VBAT=1.8V ,IOUT=1mA→2.
