TOREX SEMICONDUCTOR XCL238

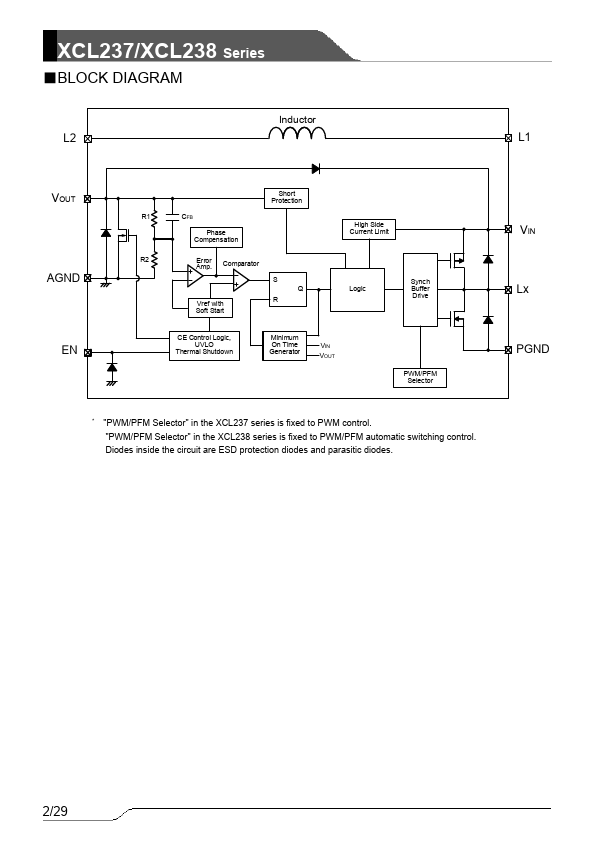

the XCL238 series is fixed to PWM/PFM automatic switching control.| Part No. | XCL238 |
|---|---|
| Datasheet | XCL238 Download |
| Manufacturer |  TOREX SEMICONDUCTOR |
| Description | 1.5A Inductor Built-in Step-Down micro DC/DC Converters |
| Buy | Stock & Price |

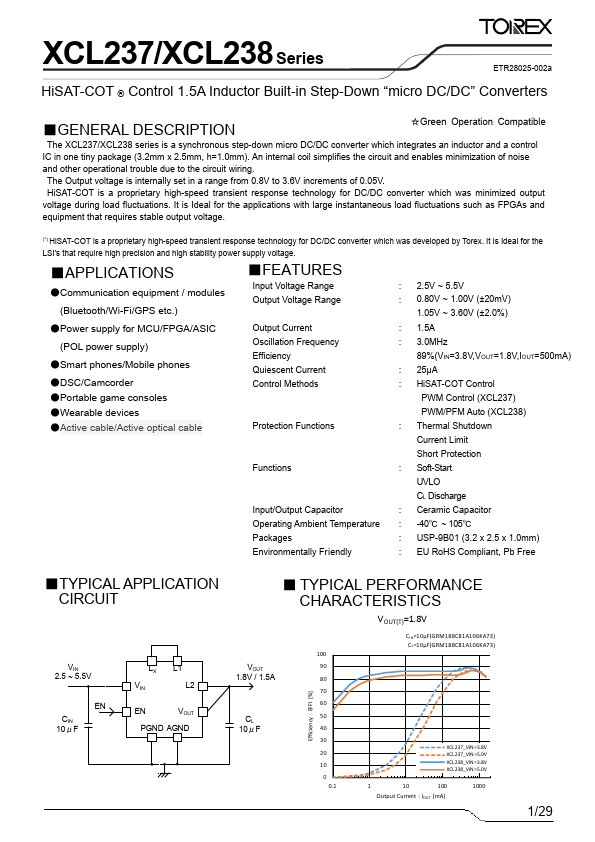

GENERAL DESCRIPTION
☆Green Operation Compatible The XCL237/XCL238 series is a synchronous step-down micro DC/DC converter which integrates an inductor and a control IC in one tiny package (3.2mm x 2.5mm, h=1.0mm). An internal coil simplifies the circuit and enables minimization of noise and other operational trouble due to the circuit wiring. The Output voltage is internally set in a range from 0.8V to 3.6V increments of 0.05V. HiSAT-COT is a proprietary high-speed transient response technology for DC/DC converter which was minimized output voltage during load fluctuations. It is Ideal for the applications with large instantaneous load fluctuations such as FPGAs and equipment that requires stable output voltage. (*) HiSAT-COT is a proprietary high-speed transient response technology for DC/DC converter which was developed by Torex. It is Ideal for the LSI's that require high precision and high stability power supply voltage.●
APPLICATIONS
●Communication equipment / modules (Bluetooth/W...
