XD6216 - 28V Low Power Consumption 150mA Voltage Regulators

Description

XD6216 series are positive voltage regulator ICs with 28V of operation voltage.

error amplifier, a current limiter, a thermal shutdown circuit and a phase compensation circuit plus a driver transistor.

Features

ax Output Current Low Power Consumption Stand-by Current Dropout Voltage Input Voltage Range Output Voltage Range Fixed Output Accuracy High Ripple Rejection Built.
in Protection Output Capacitor Operating Ambient Temperature Packages Environmentally Friendly : 150mA (VIN=VOUT+3.0V) : 5μA : Less than 0.1μA : 190mV@IOUT=20mA (VOUT=5.0V) : 2.0V ~ 28.0V : 1.8V ~ 12.0V (0.1V Step) : ±1% (VOUT≧2.0V) ±20mV (VOUT≦1.9V) : 30dB@1kHz : Current Limit Thermal Shutdown : Ceramic Capacitor Compatible.

Torex

📥 Download Datasheet

Datasheet Details

Part number	XD6216
Manufacturer	Torex
File Size	691.79 KB
Description	28V Low Power Consumption 150mA Voltage Regulators
Datasheet	XD6216 Datasheet

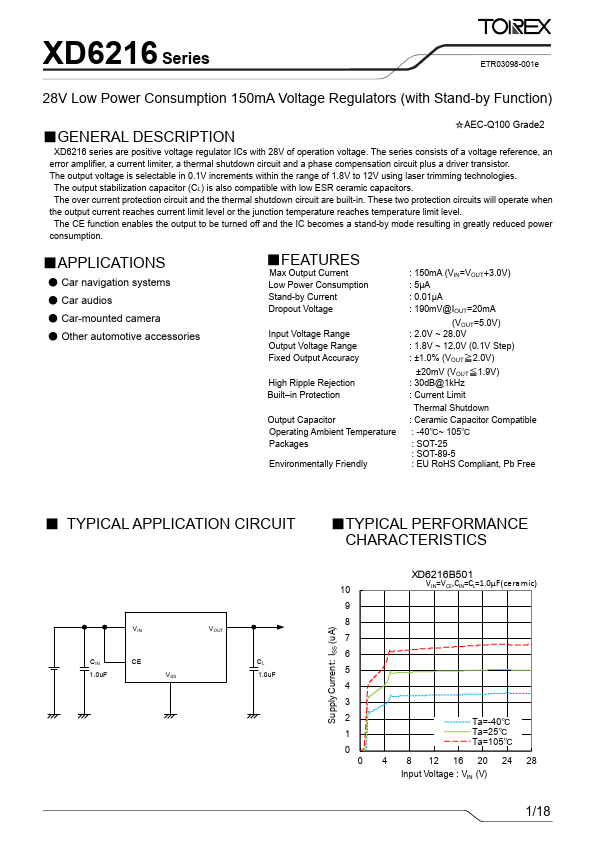

Additional preview pages of the XD6216 datasheet.

📁 Similar Datasheet

Other Datasheets by Torex

XD6239 - 300mA highspeed LDO regulator
XD6121 - Voltage Detector
XD6122 - Voltage Detector
XD6123 - Voltage Detector
XD6124 - Voltage Detector
XD6130 - Watchdog Timeout Period Externally Adjustable Voltage Detector
XD6131 - Watchdog Timeout Period Externally Adjustable Voltage Detector
XD6132 - Delay capacitor adjustable voltage detectors

Full PDF Text Transcription

Click to expand full text

XD6216 Series ETR03098-001d 28V Low Power Consumption 150mA Voltage Regulators (with Stand-by Function) ■GENERAL DESCRIPTION ☆AEC-Q100 Grade2 XD6216 series are positive voltage regulator ICs with 28V of operation voltage. The series consists of a voltage reference, an error amplifier, a current limiter, a thermal shutdown circuit and a phase compensation circuit plus a driver transistor. The output voltage is selectable in 0.1V increments within the range of 1.8V to 12V using laser trimming technologies. The output stabilization capacitor (CL) is also compatible with low ESR ceramic capacitors. The over current protection circuit and the thermal shutdown circuit are built-in.
