XD6702 Datasheet High Speed Voltage Regulator

Manufacturer: Torex Semiconductor

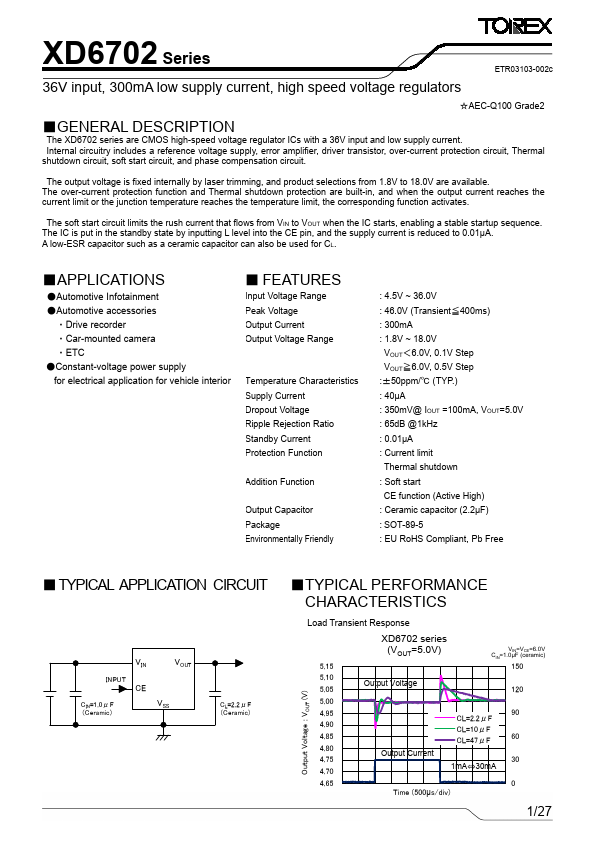

Overview: XD6702 Series ETR03103-002b 36V input, 300mA low supply current, high speed voltage regulators ☆AEC-Q100 Grade2.

General Description

The XD6702 series are CMOS high-speed voltage regulator ICs with a 36V input and low supply current.

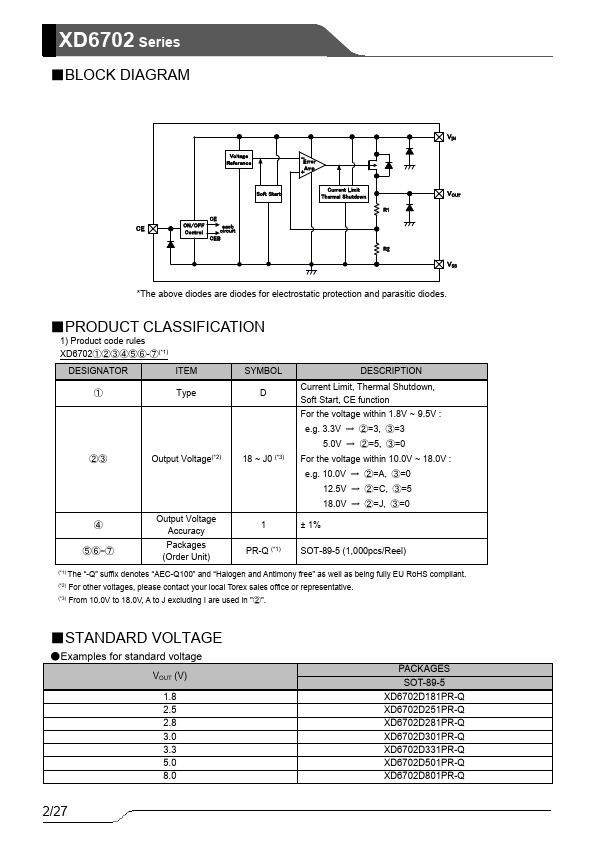

Internal circuitry includes a reference voltage supply, error amplifier, driver transistor, over-current protection circuit, Thermal shutdown circuit, soft start circuit, and phase compensation circuit.

The output voltage is fixed internally by laser trimming, and product selections from 1.8V to 18.0V are available.

Key Features

  • nput Voltage Range Peak Voltage Output Current Output Voltage Range Temperature Characteristics Supply Current Dropout Voltage Ripple Rejection Ratio Standby Current Protection Function Addition Function Output Capacitor Package Environmentally Friendly : 4.5V ~ 36.0V : 46.0V (Transient≦400ms) : 300mA : 1.8V ~ 18.0V VOUT＜6.0V, 0.1V step settings VOUT≧6.0V, 0.5V step settings :±50ppm/℃ (TYP. ) : 40μA : 350mV@ IOUT =100mA,VOUT=5.0V : 65dB @1kHz : 0.1μA : Current limit Thermal shutdown : Soft sta.
