TOREX SEMICONDUCTOR XM981A
the XM981A is ideal for applications that require high efficiency in a small footprint and low profile. The XM981A also supports parallel connection, allowing up to 4 parallel connections (6A x 4 parallel = 24A), making it usable in applications requiring higher power.| Part No. | XM981A |
|---|---|
| Datasheet | XM981A Download |
| Manufacturer |  TOREX SEMICONDUCTOR |
| Description | 60V 6A buck Charge pump-based DCDC Converter Module |
| Buy | Stock & Price |

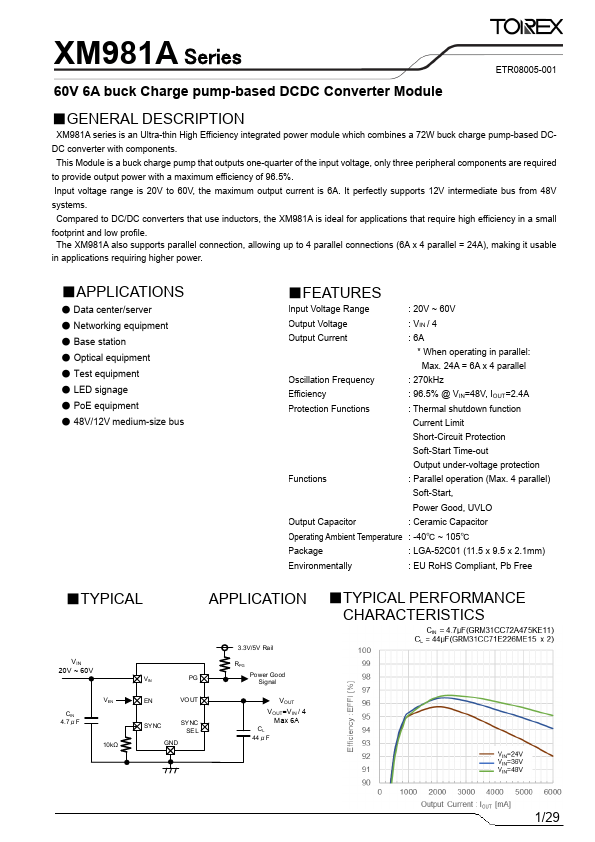

GENERAL DESCRIPTION
XM981A series is an Ultra-thin High Efficiency integrated power module which combines a 72W buck charge pump-based DCDC converter with components. This Module is a buck charge pump that outputs one-quarter of the input voltage, only three peripheral components are required to provide output power with a maximum efficiency of 96.5%. Input voltage range is 20V to 60V, the maximum output current is 6A. It perfectly supports 12V intermediate bus from 48V systems. Compared to DC/DC converters that use inductors,●
APPLICATIONS
● Data center/server● Networking equipment
● Base station
● Optical equipment
● Test equipment
● LED signage
● PoE equipment
● 48V/12V medium-size bus
●TYPICAL
●
FEATURES
Input Voltage Range : 20V ~ 60V Output Voltage : VIN / 4 Output Current : 6A * When operating in parallel: Max. 24A = 6A x 4 parallel Oscillation Frequency : 270kHz Efficiency : 96.5% @ VIN=48V, IOUT=2.4A Protection Functions : Thermal shutdown function Current Limit Short-Circuit Protection Soft-Start Time-out Output under-voltage protection Functions : Parallel operation (Max.
