TA8251AH Description

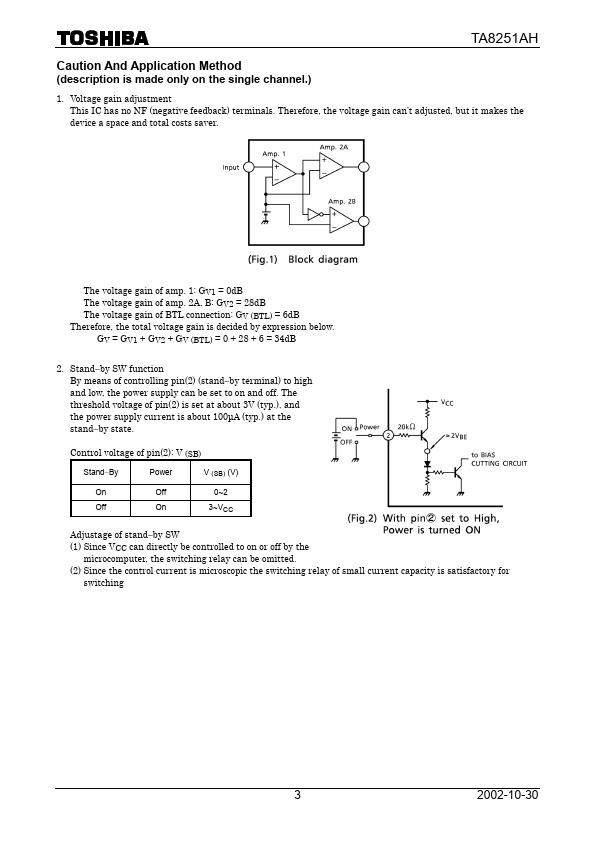

is made only on the single channel.) 1. Voltage gain adjustment This IC has no NF (negative feedback) terminals. Therefore, the voltage gain can’t adjusted, but it makes the device a space and total costs saver.

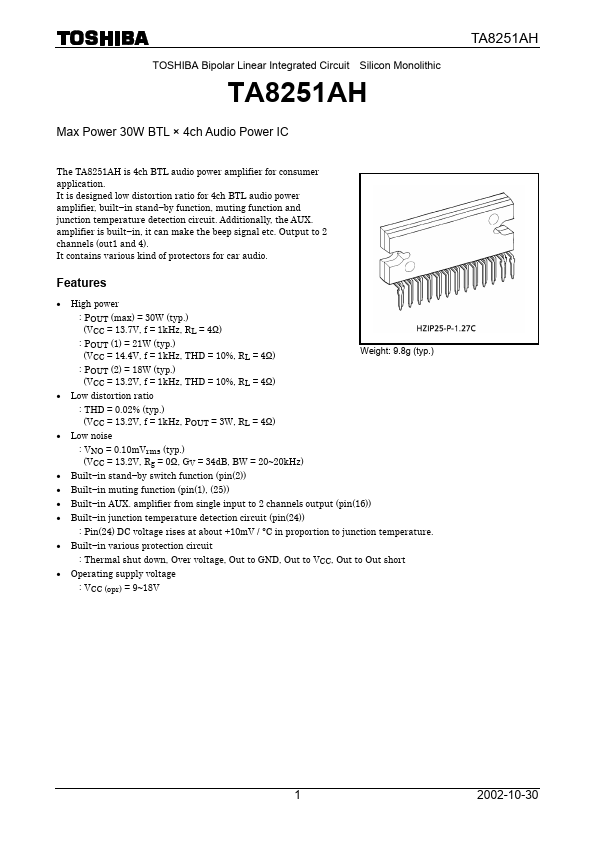

TA8251AH Key Features
- High power
- Low distortion ratio
- Low noise
- Built-in stand-by switch function (pin(2))
- Built-in muting function (pin(1), (25))
- Built-in AUX. amplifier from single input to 2 channels output (pin(16))
- Built-in junction temperature detection circuit (pin(24))
- Built-in various protection circuit
- Operating supply voltage
