Toshiba TMPM375FSDMG

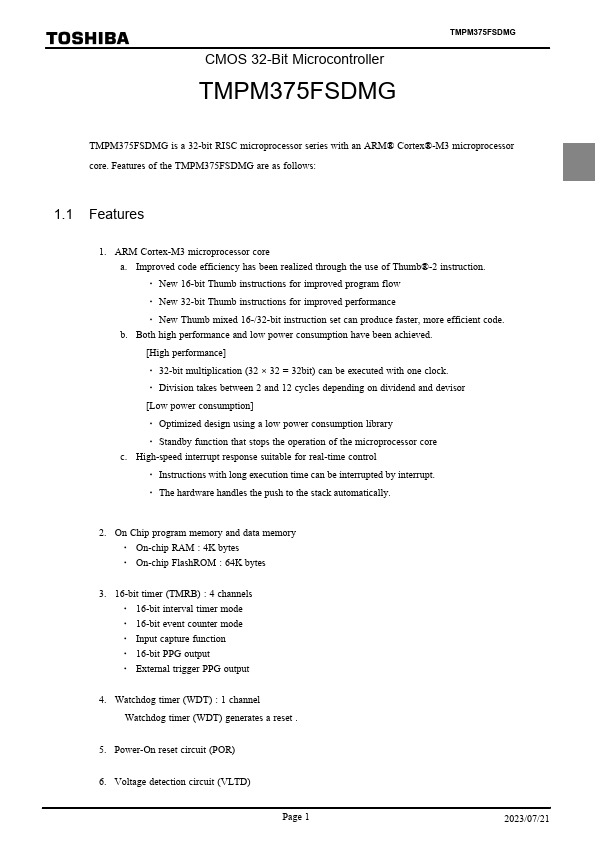

TMPM375FSDMG is a 32-bit RISC microprocessor series with an ARM® Cortex®-M3 microprocessor core. Features of the TMPM375FSDMG are as follows: 1.1 Features 1.| Part No. | TMPM375FSDMG |
|---|---|
| Datasheet | TMPM375FSDMG Download |
| Manufacturer |  Toshiba |
| Description | 32-Bit RISC Microcontroller |
| Buy | Stock & Price |
FEATURES

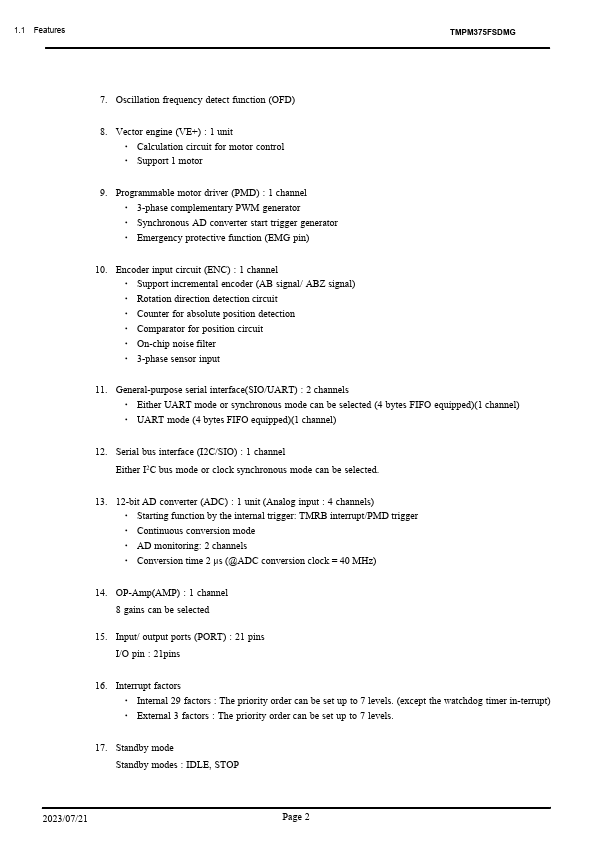

TMPM375FSDMG 7. Oscillation frequency detect function (OFD) 8. Vector engine (VE+) : 1 unit● Calculation circuit for motor control
● Support 1 motor 9. Programmable motor driver (PMD) : 1 channel
● 3-phase complementary PWM generator
● Synchronous AD converter start trigger generator
● Emergency protective function (EMG pin) 10. Encoder input circuit (ENC) : 1 channel
● Support incremental encoder (AB signal/ ABZ signal)
● Rotation direction detection circuit
● Counter for absolute position detection
● Comparator for position circuit
● On-chip noise filter
● 3-phase sensor input 11. General-purpose serial interface(SIO/UART) : 2 channels
● Either UART mode or synchronous mode can be selected (4 bytes FIFO equipped)(1 channel)
● UART mode (4 bytes FIFO equipped)(1 channel) 12. Serial bus interface (I2C/SIO) : 1 channel Either I2C bus mode or clock synchronous mode can be selected. 13. 12-bit AD converter (ADC) : 1 unit (Analog input : 4 channels)
● Starting function by the int...
