XCEZ20V - Zener Diode

Product Overview

Toshiba

Part number	XCEZ20V
Manufacturer	Toshiba
File Size	2.67 MB
Description	Zener Diode
Datasheet	XCEZ20V Datasheet
Note	This datasheet PDF includes multiple part numbers: XCEZ20V, XCEZ5V6. Please refer to the document for exact specifications by model.

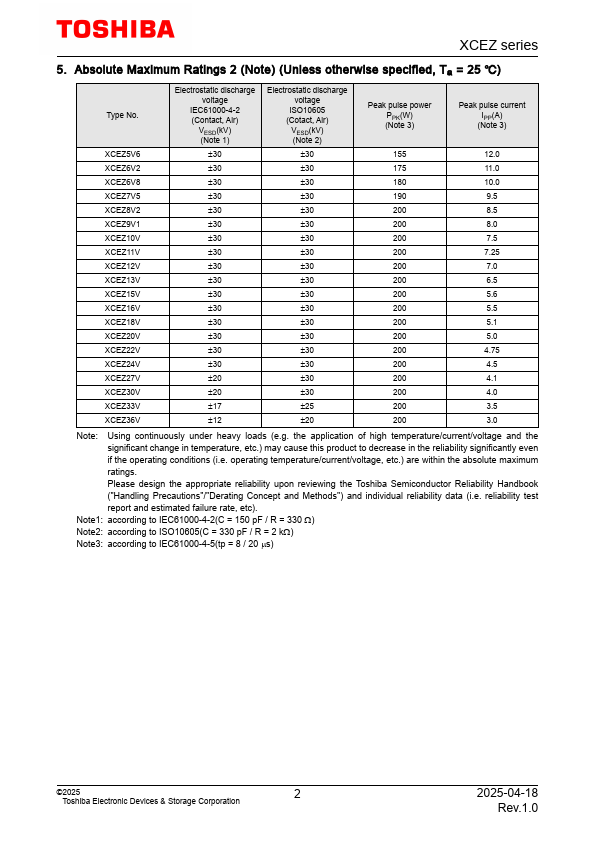

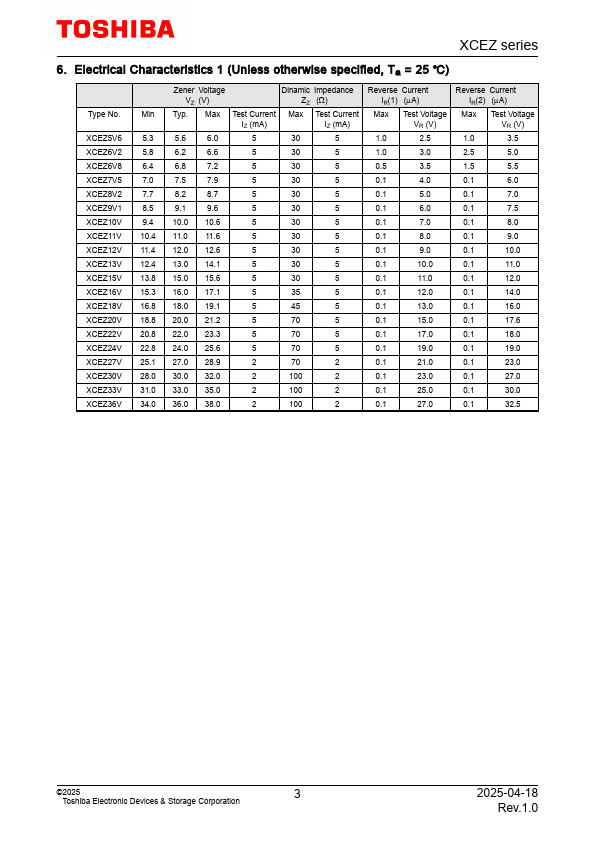

Additional preview pages of the XCEZ20V datasheet.

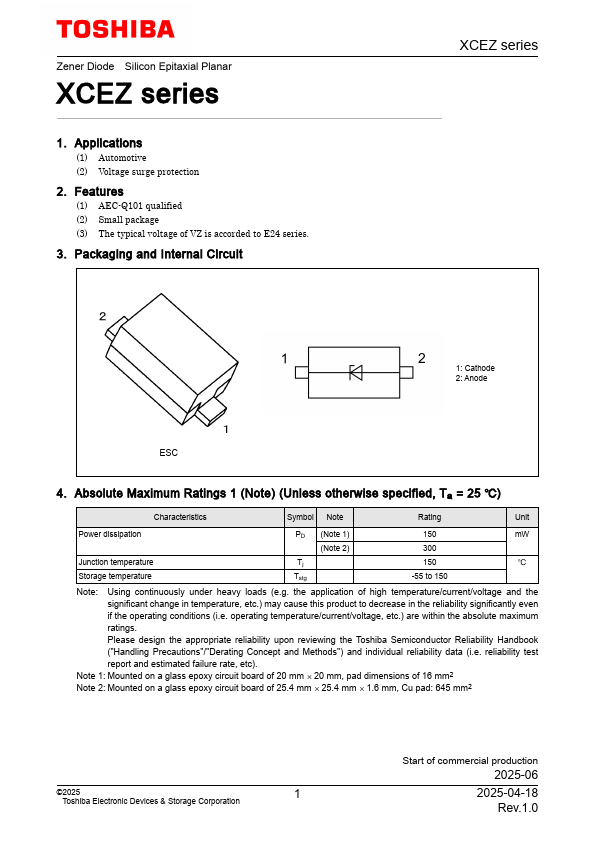

(1) AEC-Q101 qualified (2) Small package (3) The typical voltage of VZ is accorded to E24 series. 3. Packaging and Internal Circuit XCEZ series 1: Cathode 2: Anode ESC 4. Absolute Maximum Ratings 1 (Note) (Unless otherwise specified, Ta = 25.
) Characteristics Symbol Note Rating Unit Power dissipation PD (Note 1) 150 mW (Note 2) 300 Junction temperature Tj 150.
Storage temperature Tstg -55 to 150 Note: Using continuously under heavy loads (e. g. the.
