XCEZ30V - Zener Diode

This page provides the datasheet information for the XCEZ30V, a member of the XCEZ5V6 Zener Diode family.

Datasheet Summary

Features

  • (1) AEC-Q101 qualified (2) Small package (3) The typical voltage of VZ is accorded to E24 series. 3. Packaging and Internal Circuit XCEZ series 1: Cathode 2: Anode ESC 4. Absolute Maximum Ratings 1 (Note) (Unless otherwise specified, Ta = 25.
  • ) Characteristics Symbol Note Rating Unit Power dissipation PD (Note 1) 150 mW (Note 2) 300 Junction temperature Tj 150.
  • Storage temperature Tstg -55 to 150 Note: Using continuously under heavy loads (e. g. the.

📥 Download Datasheet

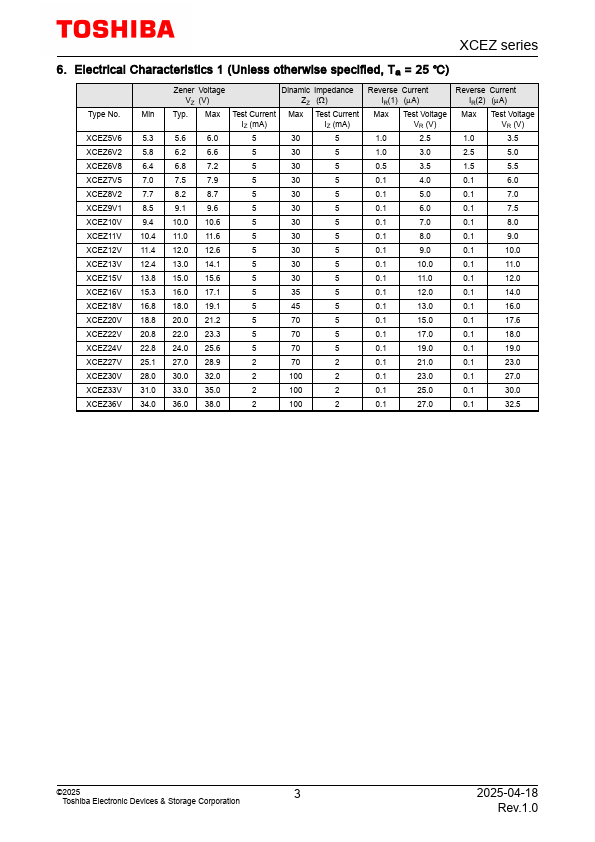

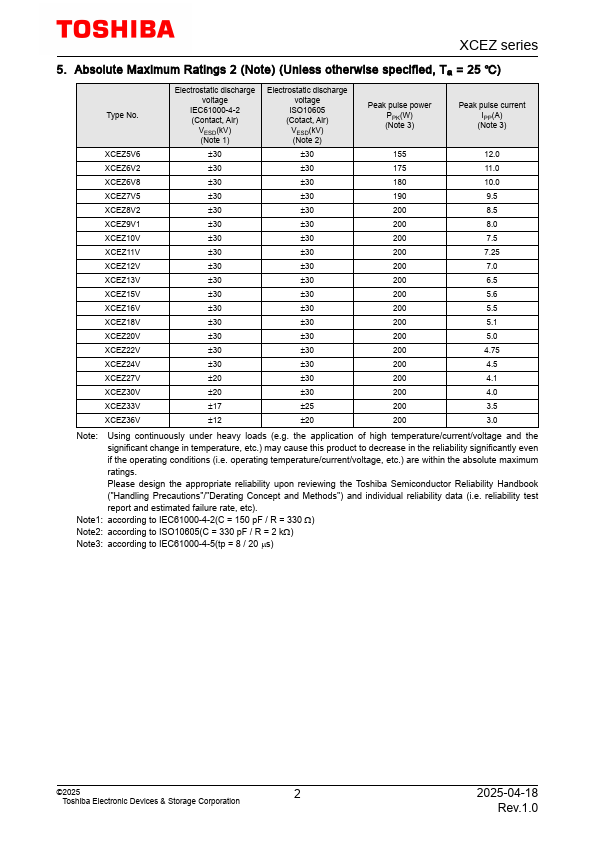

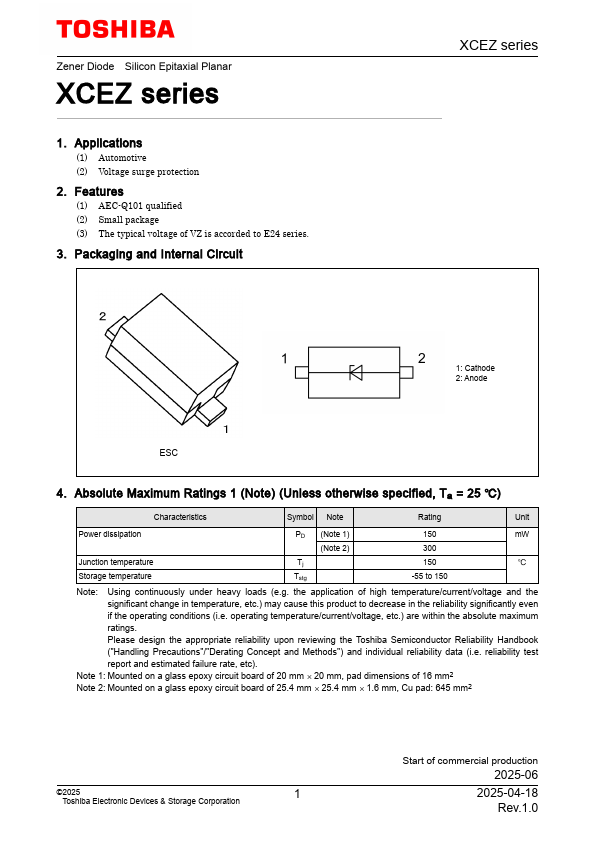

Datasheet preview – XCEZ30V

Datasheet Details

Part number XCEZ30V
Manufacturer Toshiba
File Size 2.67 MB
Description Zener Diode
Datasheet download datasheet XCEZ30V Datasheet
Additional preview pages of the XCEZ30V datasheet.

📁 Similar Datasheet

Other Datasheets by Toshiba

Full PDF Text Transcription

Click to expand full text
Zener Diode Silicon Epitaxial Planar XCEZ series 1. Applications (1) Automotive (2) Voltage surge protection 2. Features (1) AEC-Q101 qualified (2) Small package (3) The typical voltage of VZ is accorded to E24 series. 3. Packaging and Internal Circuit XCEZ series 1: Cathode 2: Anode ESC 4. Absolute Maximum Ratings 1 (Note) (Unless otherwise specified, Ta = 25 �) Characteristics Symbol Note Rating Unit Power dissipation PD (Note 1) 150 mW (Note 2) 300 Junction temperature Tj 150 � Storage temperature Tstg -55 to 150 Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e.
